(08-025A) - HYDRAULICS - ARM CYLINDER, MODELS WITH OFFSET BOOM

Запчасти Case CX135SR (08-025A) - HYDRAULICS - ARM CYLINDER, MODELS WITH OFFSET BOOM (08) - HYDRAULICS

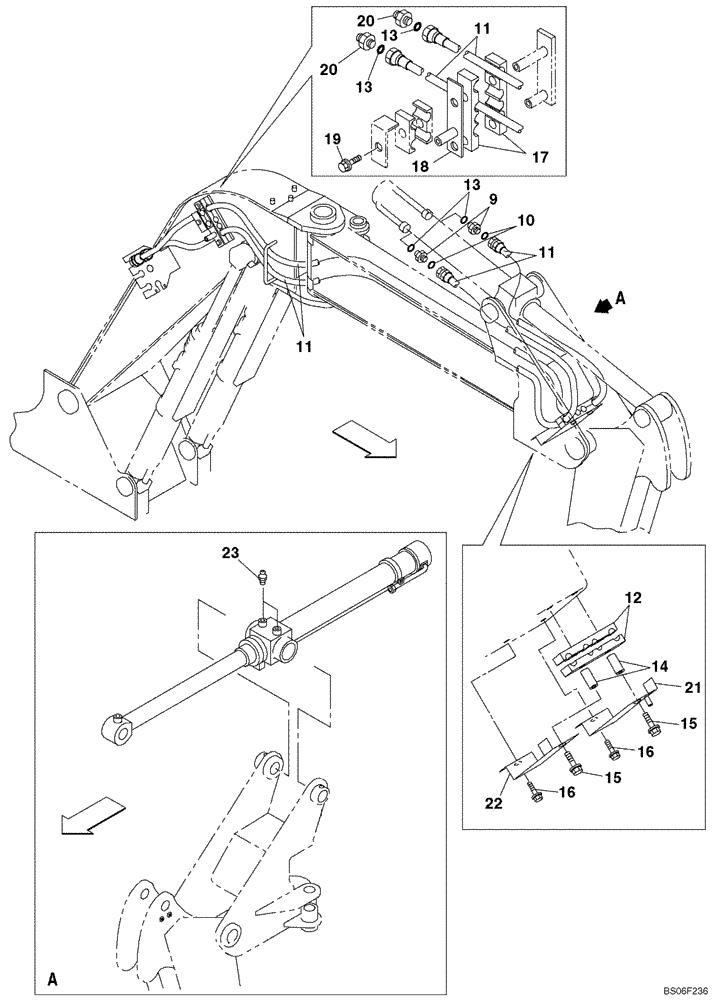

Схема запчастей Case CX135SR - (08-025A) - HYDRAULICS - ARM CYLINDER, MODELS WITH OFFSET BOOM (08) - HYDRAULICS
21
10
13
13
18
19
22
16
11
13
23
11
20
15
17
11
12
15
16
9
14
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV2551

HYDRAULIC CYLINDER

Arm; Models With Offset Boom; See Figure 08-107A

1шт.

9

KHJ1348

ADAPTER

Incl. 10

2шт.

10

154503A1

O-RING

1шт.

11

KMV11340

HOSE ASSY.

5450 mm; Replaces KMV11050, KMV2220

2шт.

12

KMV2530

HOSE CLAMP

4шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

14

KAV2149

BOSS

2шт.

15

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

16

166352A1

BOLT

2шт.

17

KMV2195

HOSE CLAMP

2шт.

18

KMV2198

PLATE

1шт.

19

166352A1

BOLT

1шт.

20

KHJ2041

ADAPTER

2шт.

21

KMV2493

PLATE

1шт.

22

KMV2494

PLATE

1шт.

23

153630A1

LUBE NIPPLE

2шт.
