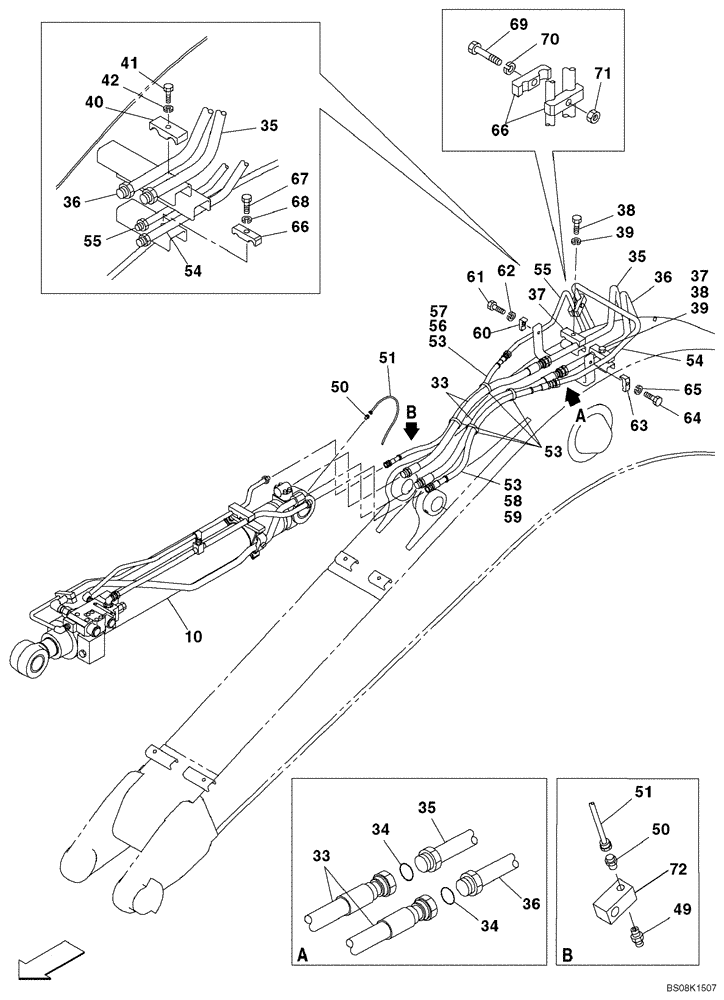

Запчасти Case CX135SR (08-024) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

10

KMV2548

HYDRAULIC CYLINDER

Arm; Models With Load Hold; See Figure 08-107

1шт.

33

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

34

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

35

KMV2375

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

36

KMV2376

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

37

MFV6195

PIPE CLAMP

2шт.

38

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

39

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

40

152085A1

COLLAR

1шт.

41

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

42

183-112VR

SPRING WASHER

1шт.

49

153630A1

LUBE NIPPLE

1шт.

50

150190A1

FITTING

2шт.

51

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

1шт.

53

150496A1

MOUNTING CLIP

1шт.

54

KMV2509

TUBE ASSY.

1шт.

55

KMV2508

TUBE ASSY.

1шт.

56

KRJ4410

HYDRAULIC HOSE

1шт.

57

150774A1

PLASTIC-RUBBER TUBE

1000 mm (39-3/8 in)

1шт.

58

KRV3214

HYDRAULIC HOSE,12.70 mm ID x 950.00 mm

1шт.

59

150774A1

PLASTIC-RUBBER TUBE

1000 mm (39-3/8 in)

1шт.

60

169149A1

COLLAR

1шт.

61

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

62

183-112VR

SPRING WASHER

1шт.

63

166401A1

HALF-FLANGE

1шт.

64

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

65

183-112VR

SPRING WASHER

1шт.

66

KEV0405

PIPE CLAMP

3шт.

67

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

68

183-112VR

SPRING WASHER

1шт.

69

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

70

183-112VR

SPRING WASHER

1шт.

71

829-1412

NUT,M12, Cl 10.9

1шт.

72

168623A1

BAR

1шт.
