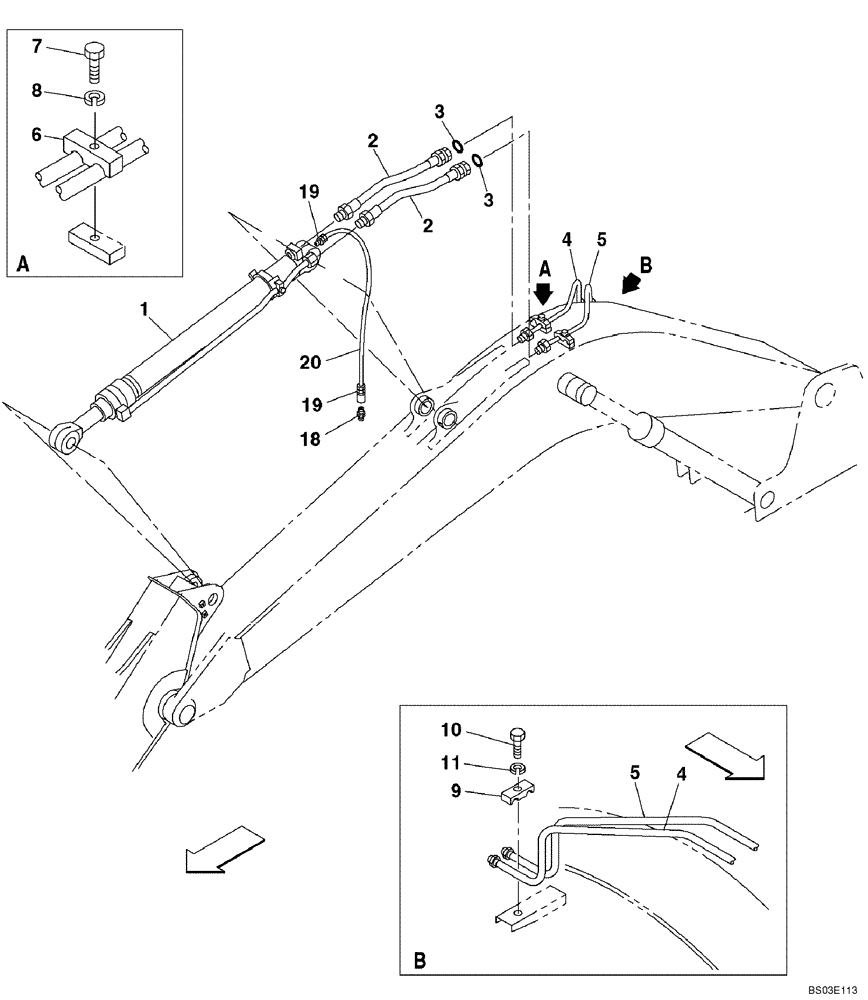

Запчасти Case CX135SR (08-023) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KNV1617

HYDRAULIC CYLINDER

Arm; Models Without Load Hold; See Figure 08-106

1шт.

1

KNV1617R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR (NORTH AMERICA), Arm; Models Without Load Hold (8/02-)

1шт.

1

KNV1617C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KMV2375

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

KMV2376

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

6

MFV6195

PIPE CLAMP

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

9

152085A1

COLLAR

1шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

11

183-112VR

SPRING WASHER

1шт.

18

153630A1

LUBE NIPPLE

1шт.

19

150190A1

FITTING

2шт.

20

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

1шт.
