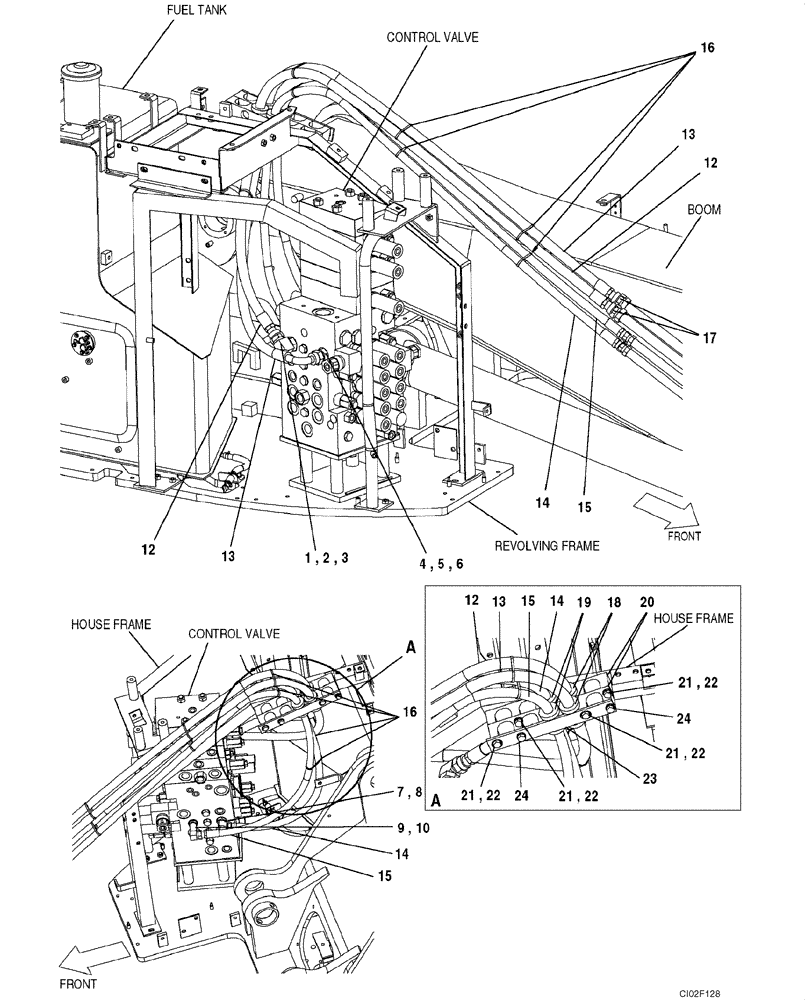

Запчасти Case CX135SR (08-022) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

KHJ1804

ELBOW

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KHJ1348

ADAPTER

Incl. 5

1шт.

5

154503A1

O-RING

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

7

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KHJ1044

ELBOW

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

12

KMJ2803

HOSE ASSY.,15.90 mm ID x 2150.00 mm

1шт.

13

KMJ2804

HOSE ASSY.,15.90 mm ID x 2350.00 mm

1шт.

14

KMJ2805

HOSE ASSY.,12.70 mm ID x 2250.00 mm

1шт.

15

KMJ2805

HOSE ASSY.,12.70 mm ID x 2250.00 mm

1шт.

16

150498A1

MOUNTING CLIP

1шт.

17

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

18

KHJ2022

HOSE CLAMP

2шт.

19

KHJ2021

HOSE CLAMP

2шт.

20

KHJ2403

CLAMP

2шт.

21

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

22

150409A1

WASHER

4шт.

23

KHJ2290

PLATE

1шт.

24

166052A1

BOLT

2шт.
