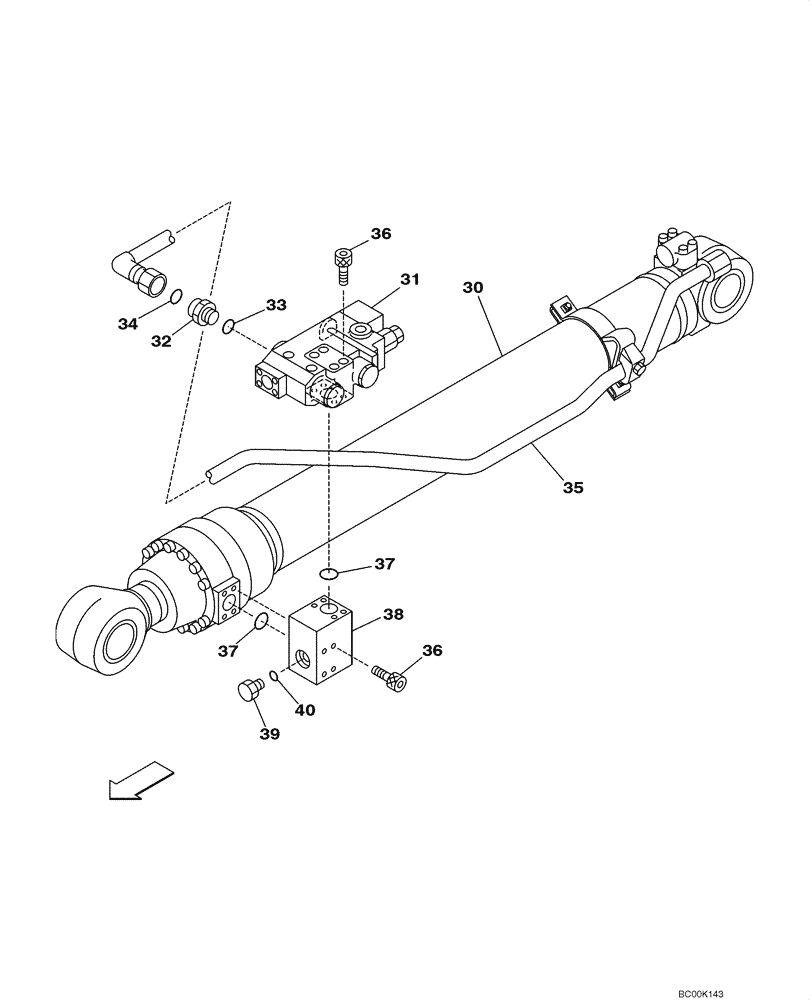

Запчасти Case CX130 (08-030) - HYDRAULICS - CYLINDER, ARM (08) - HYDRAULICS

.

Models With Load Hold

1шт.

30

KNV1621

HYDRAULIC CYLINDER

Arm, See Figure 08-107, For Mounting, See Figure 09-44

1шт.

30

KNV1621R

REMAN-HYD CYLINDER

CX130 CASE CRAWLER EXCAVATOR

1шт.

30

KNV1621C

CORE-HYD CYLINDER

Return Number

1шт.

31

KNV1397

VALVE

See Figure 08-111

1шт.

32

KHJ1349

ADAPTER

Incl. 33

1шт.

33

154523A1

O-RING

1шт.

34

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

35

KNV1506

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

36

862-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

8шт.

37

154529A1

O-RING

2шт.

38

163448A1

MANIFOLD

1шт.

39

159085A1

PLUG

Incl. 40

1шт.

40

154487A1

O-RING

1шт.
