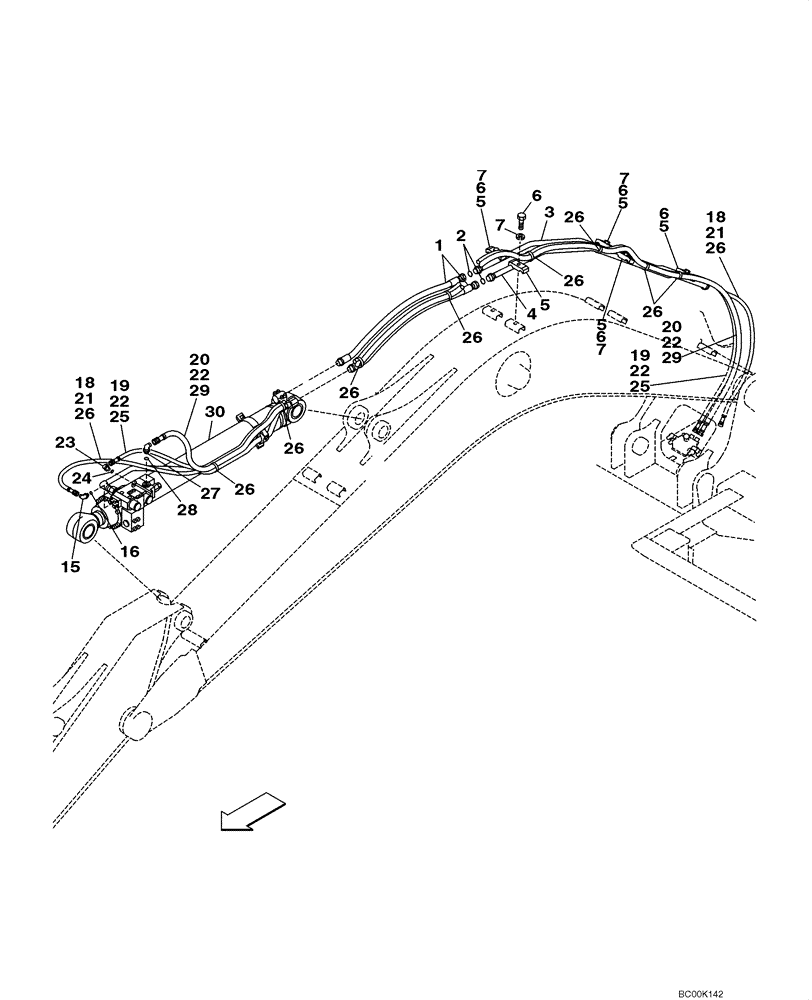

Запчасти Case CX130 (08-029) - HYDRAULICS - CYLINDER, ARM (08) - HYDRAULICS

.

Models With Load Hold

1шт.

1

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KNV1126

PIPE ASSY.

1шт.

4

KNV1410

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

159742A1

COLLAR

5шт.

6

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

5шт.

15

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 16

2шт.

16

154475A1

O-RING

1шт.

18

169160A1

HOSE ASSY.

1шт.

19

KHJ1808

HOSE ASSY.

1шт.

20

KHJ1952

HOSE ASSY.

1шт.

21

169297A1

PLASTIC-RUBBER TUBE

1шт.

22

150067A1

MOUNTING CLIP

150 mm (6 in)

4шт.

23

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 24

1шт.

24

154475A1

O-RING

1шт.

25

168871A1

PLASTIC-RUBBER TUBE

1шт.

26

150067A1

MOUNTING CLIP

150 mm (6 in)

20шт.

27

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 28

1шт.

28

154487A1

O-RING

1шт.

29

168878A1

PLASTIC-RUBBER TUBE

1шт.

30

KNV1621

HYDRAULIC CYLINDER

Arm, See Figure 08-107, For Mounting, See Figure 09-44

1шт.

30

KNV1621R

REMAN-HYD CYLINDER

CX130 CASE CRAWLER EXCAVATOR

1шт.

30

KNV1621C

CORE-HYD CYLINDER

Return Number

1шт.
