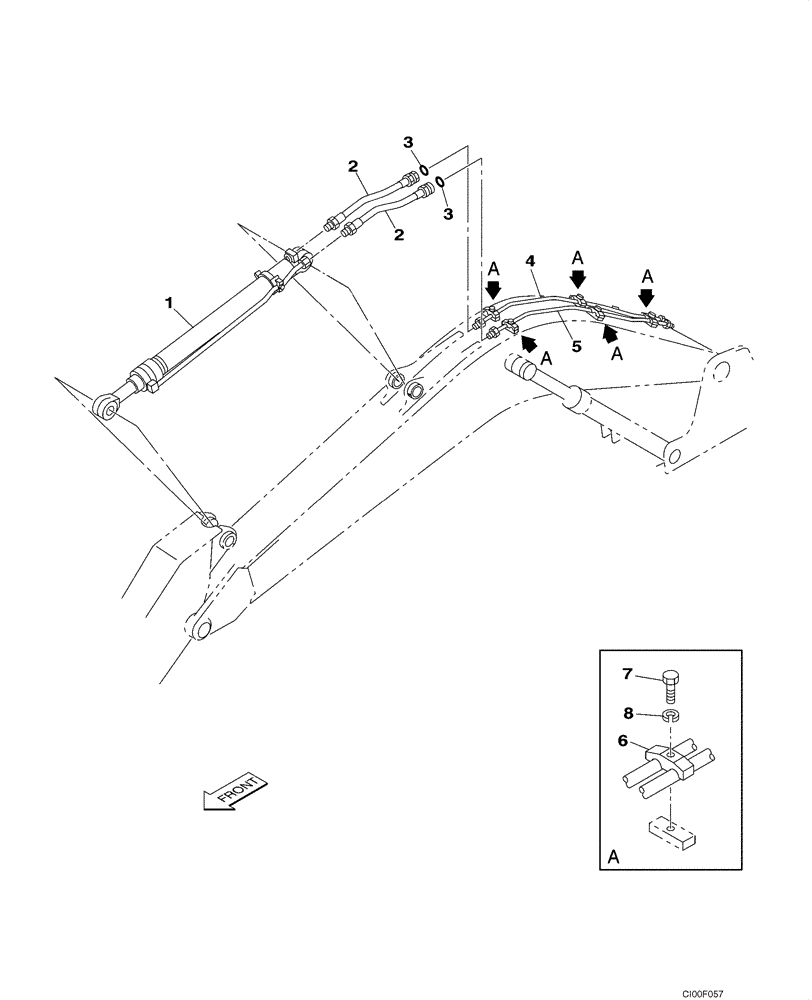

Запчасти Case CX130 (08-028) - HYDRAULICS - CYLINDER, ARM (08) - HYDRAULICS

.

Models Without Load Hold

1шт.

1

KNV1617

HYDRAULIC CYLINDER

Arm, See Figure 08-106, For Mounting, See Figure 09-44

1шт.

1

KNV1617R

REMAN-HYD CYLINDER

CX130 CASE CRAWLER EXCAVATOR, Arm

1шт.

1

KNV1617C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

4

KNV1126

PIPE ASSY.

1шт.

5

KNV1127

PIPE ASSY.

1шт.

6

159742A1

COLLAR

5шт.

7

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

5шт.
