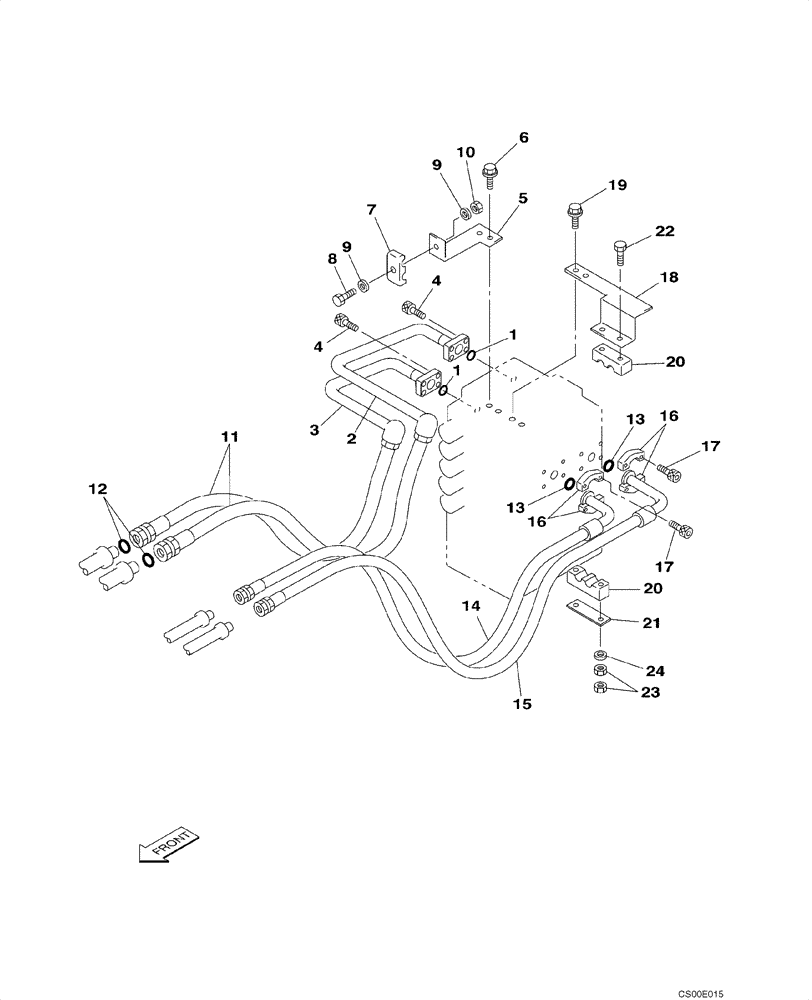

Запчасти Case CX130 (08-027) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

154528A1

O-RING

2шт.

2

KNJ2520

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

3

KNJ2521

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

5

KNJ2524

BRACKET

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

7

152742A1

COLLAR

1шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

9

150811A1

WASHER

M12

2шт.

10

829-1412

NUT,M12, Cl 10.9

1шт.

11

KNJ2518

HYDRAULIC HOSE,15.90 mm ID x 1030.00 mm

2шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

161096A1

O-RING

2шт.

14

KNJ2522

HYDRAULIC HOSE

P.I.N. DAC0713099 - DAC0713288

1шт.

14

KNJ3133

HYDRAULIC HOSE,12.70 mm ID x 970.00 mm

P.I.N. DAC0713289 and after

1шт.

15

KNJ2523

HYDRAULIC HOSE

P.I.N. DAC0713099 - DAC0713288

1шт.

16

KNJ3134

HYDRAULIC HOSE,12.70 mm ID x 1080.00 mm

P.I.N. DAC0713289 and after

1шт.

16

161080A1

FLANGE

Split

4шт.

17

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

18

KNJ12290

BRACKET

Replaces KNJ2525

1шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

20

168692A1

COLLAR

2шт.

21

168677A1

LARGE PLATE

PLATE, LARGE

1шт.

22

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

23

829-1412

NUT,M12, Cl 10.9

4шт.

24

150811A1

WASHER

M12

2шт.
