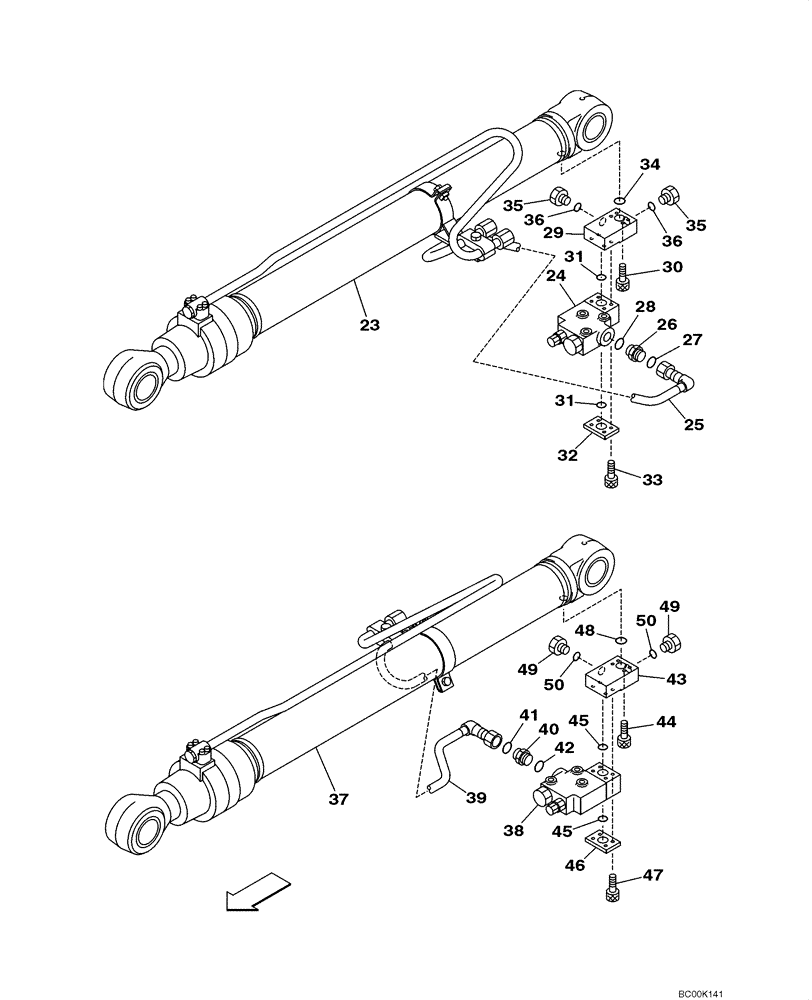

Запчасти Case CX130 (08-026) - HYDRAULICS - BOOM CYLINDER (08) - HYDRAULICS

Models With Load Hold

1шт.

23

KNV1619

HYDRAULIC CYLINDER

Right Hand, See Figure 08-104, For Mounting, See Figure 09-41

1шт.

24

KNV1396

VALVE

See Figure 08-110

1шт.

25

KNV1364

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

26

KHJ1765

ADAPTER

Incl. 27

1шт.

27

154487A1

O-RING

1шт.

28

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

29

KNV1395

MANIFOLD

1шт.

30

862-8050

SCREW

4шт.

31

154529A1

O-RING

2шт.

32

163705A1

FLANGE

1шт.

33

862-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

4шт.

34

154499A1

O-RING

1шт.

35

153105A1

PLUG

Incl. 36

2шт.

36

154475A1

O-RING

1шт.

37

KNV1620

HYDRAULIC CYLINDER

Left Hand, See Figure 08-105, For Mounting, See Figure 9-41

1шт.

38

KNV1396

VALVE

See Figure 08-110

1шт.

39

KNV1363

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

40

KHJ1765

ADAPTER

Incl. 41

1шт.

41

154487A1

O-RING

1шт.

42

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

43

KNV1395

MANIFOLD

1шт.

44

862-8050

SCREW

4шт.

45

154529A1

O-RING

2шт.

46

163705A1

FLANGE

1шт.

47

862-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

4шт.

48

154499A1

O-RING

1шт.

49

153105A1

PLUG

Incl. 50

2шт.

50

154475A1

O-RING

1шт.
