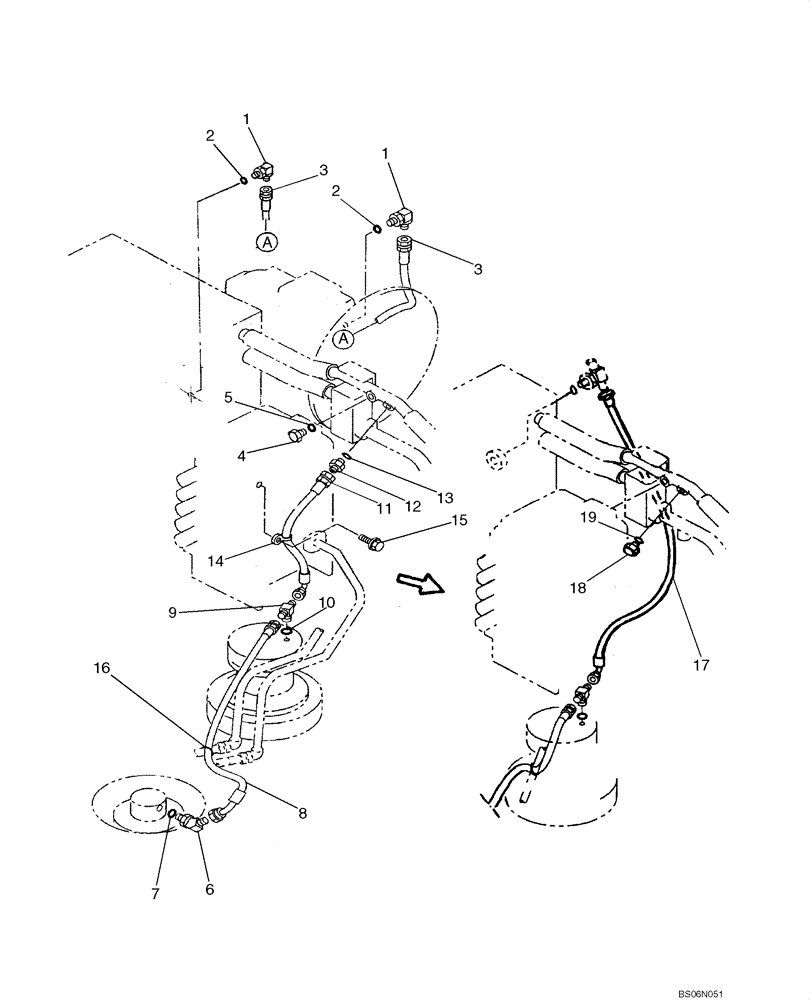

Запчасти Case CX130 (08-018) - HYDRAULICS - DRAIN LINE - BLADE MODELS WITHOUT LOAD HOLD (DAC0713246 - ) (08) - HYDRAULICS

Models Without Load Hold

1шт.

Models With Dozer Blade

1шт.

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

154475A1

O-RING

1шт.

3

KNJ3065

HOSE,12.70 mm ID x 1150.00 mm

1шт.

4

162557A1

PLUG

Incl. 5; Replaces CEA0339

1шт.

5

154475A1

O-RING

1шт.

6

157585A1

ELBOW

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

KNJ2750

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

9

KHJ1157

TEE

Incl. 10

1шт.

10

154475A1

O-RING

1шт.

11

KNJ2767

HYDRAULIC HOSE,520.00 mm

P.I.N. DAC071346 - DAC131772

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 13; P.I.N. DAC071346 - DAC131772

1шт.

13

154487A1

O-RING

1шт.

14

KHR2583

CLAMP

P.I.N. DAC071346 - DAC131772

1шт.

15

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

P.I.N. DAC071346 - DAC131772

1шт.

16

150071A1

MOUNTING CLIP

1шт.

17

KNJ11920

HOSE ASSY.,12.70 mm ID x 1650.00 mm

P.I.N. DAC131773 -

1шт.

18

159085A1

PLUG

Incl. 19; P.I.N. DAC131773 -

1шт.

19

154487A1

O-RING

1шт.
