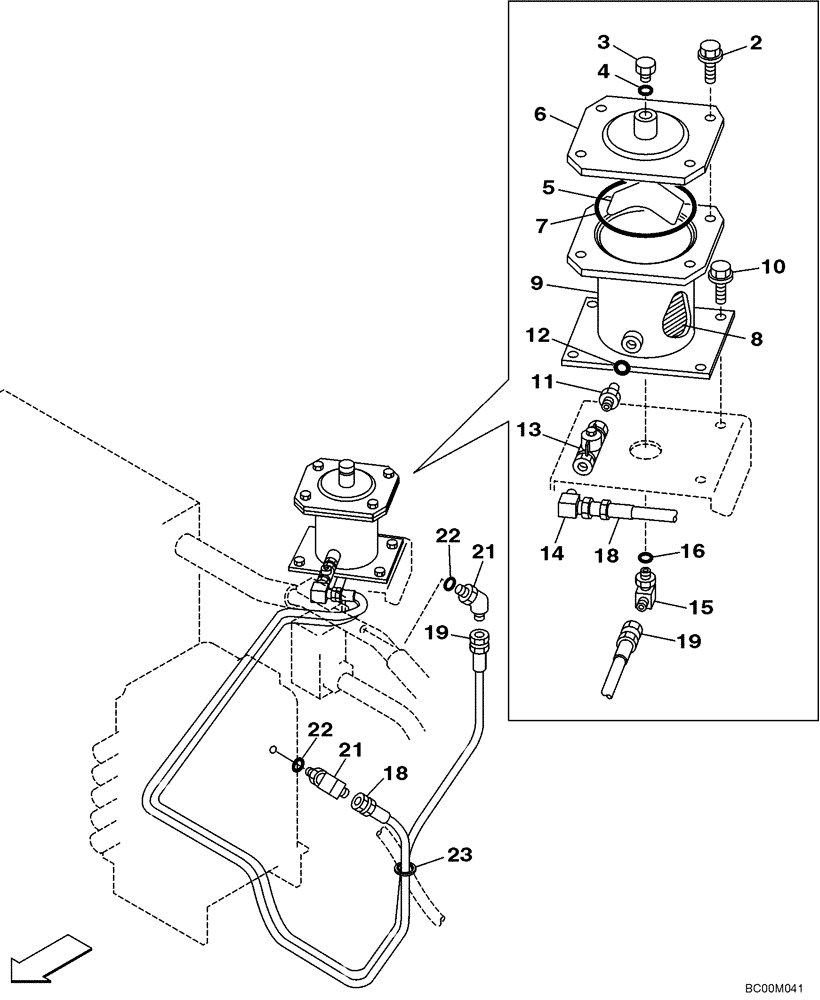

Запчасти Case CX130 (08-014) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

KHJ1488

FILTER ASSY

Incl. 2 - 9

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

159285A1

PLUG

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1487

SPRING

1шт.

6

KHJ1486

COVER

1шт.

7

154797A1

O-RING

1шт.

8

167857A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ1485

BOX

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

11

152899A1

HYD CONNECTOR

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

158923A1

DRAIN VALVE

1шт.

14

153596A1

ADAPTER

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

157853A1

HOSE,6.3 mm ID x 2050.00 mm

1шт.

19

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

21

150933A1

ELBOW

Incl. 22

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
