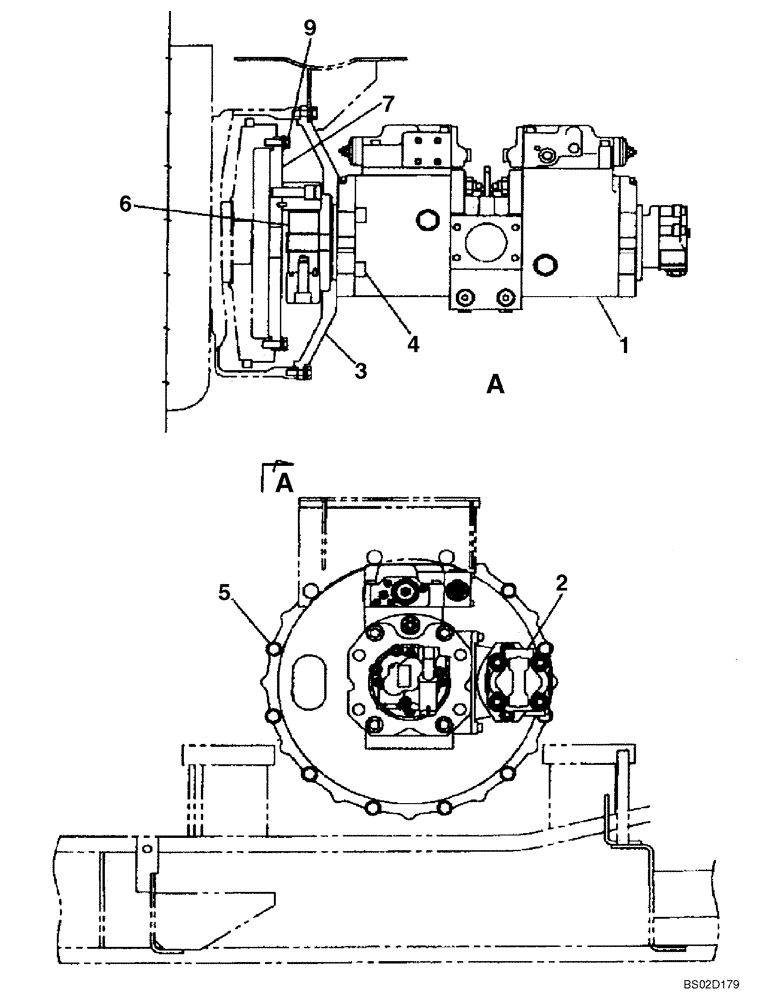

Запчасти Case CX130 (08-006) - PUMP COUPLING - MODELS WITH DOZER BLADE (DAC0713246 - ) (08) - HYDRAULICS

Models With Dozer Blade

1шт.

1

KNJ3023

PUMP, HYDRAULIC

See Figure 08-145 - 08-150

1шт.

87341958

REMAN-HYD PUMP

Remanufactured HYD PUMP - For N.A. Only, Start Serial: DAC0713246

1шт.

87341959

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

KNJ3060

PUMP

1шт.

3

KNJ3028

FLANGE

1шт.

4

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

9шт.

6

KNJ2558

COUPLING

1шт.

7

KNJ2873

FLANGE

Driven

1шт.

8

165057A1

BOLT,Hex, 3/8" - 16 x 28.50mm

8шт.

9

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.
