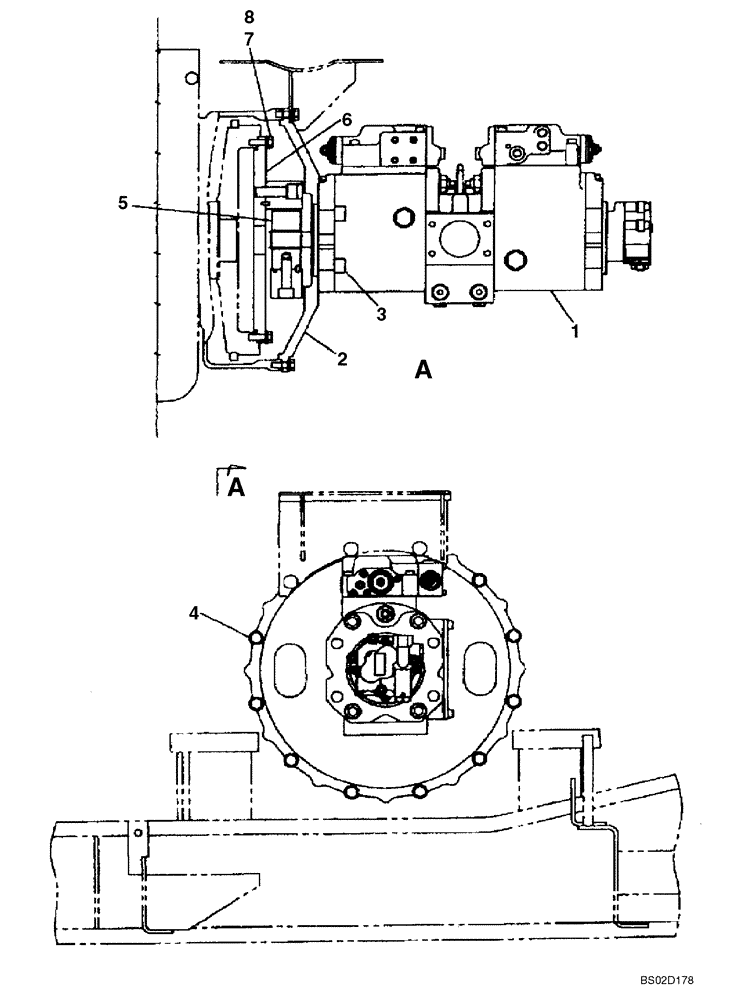

Запчасти Case CX130 (08-004) - PUMP COUPLING - MODELS WITHOUT DOZER BLADE (DAC0713246 - ) (08) - HYDRAULICS

1

KNJ3026

PUMP, HYDRAULIC

See Figure 08-132 - 08-136

1шт.

2

KNJ3028

FLANGE

1шт.

3

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

9шт.

5

KNJ2558

COUPLING

1шт.

6

KNJ2873

FLANGE

Driven

1шт.

7

165057A1

BOLT,Hex, 3/8" - 16 x 28.50mm

8шт.

8

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.
