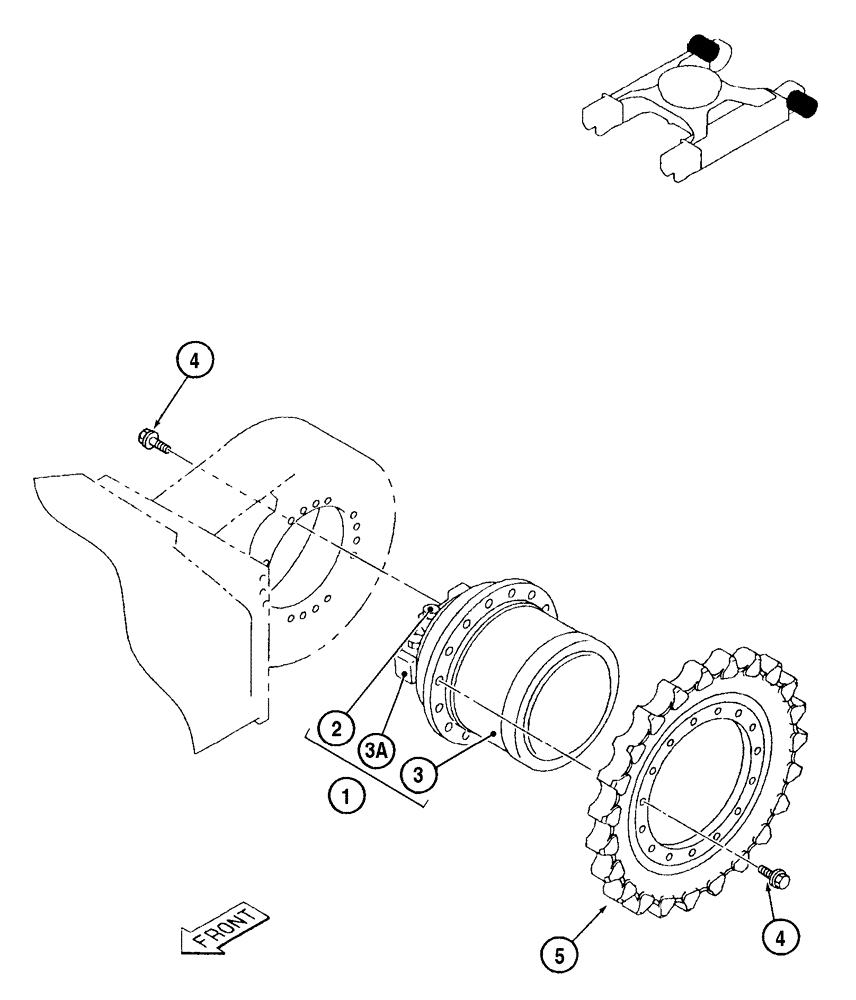

Запчасти Case CX130 (06-01A) - TRACK DRIVE ASSY (DAC0713102 - ) (06) - POWER TRAIN

1

KNA10460

MOTO-REDUCTION GEAR

Travel, Incl. 2 - 3A; Replaces 169351A1

2шт.

2

LJ013420

HYDRAULIC MOTOR

See Figure 06-03; Replaces LJ00778

1шт.

2

LJ013420R

REMAN-HYD MOTOR

1шт.

2

LJ013420C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

LN00072

REDUCER

See Figure 06-02, Replaces 164693A1

1шт.

3a

LJ00785

VALVE

See Figure 06-04

1шт.

4

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

62шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

62шт.

5

KMA1256

SPROCKET

2шт.
