(06-01) - TRACK DRIVE ASSY (DAC0713099 - DAC0713101)

Запчасти Case CX130 (06-01) - TRACK DRIVE ASSY (DAC0713099 - DAC0713101) (06) - POWER TRAIN

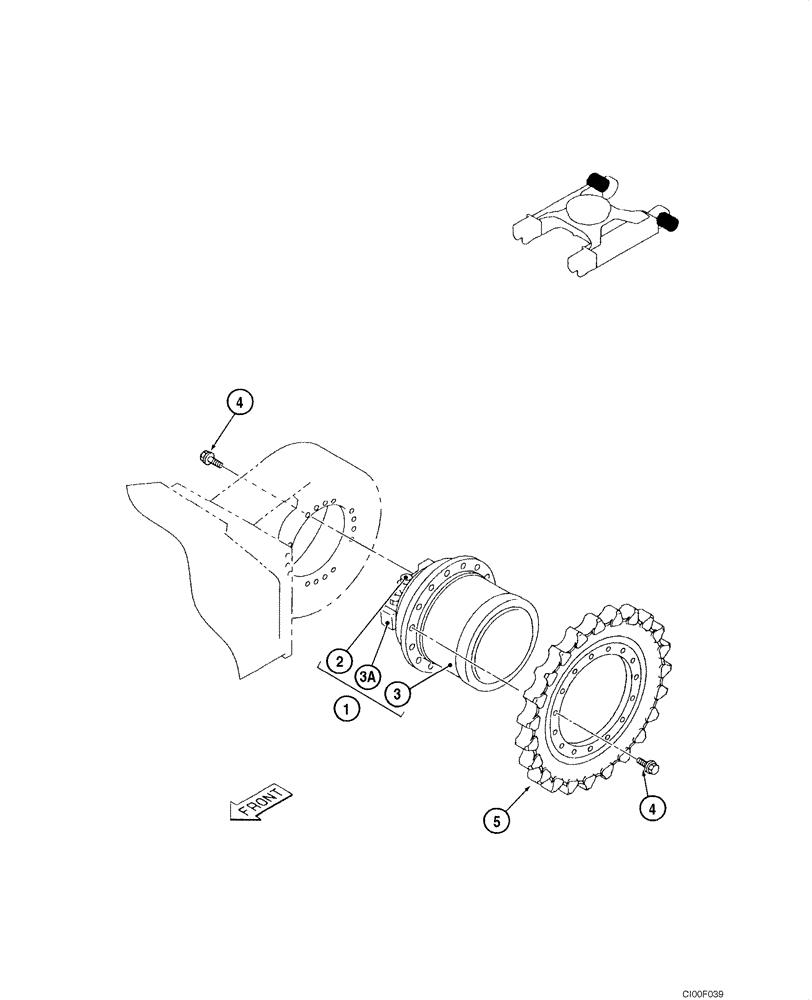

Схема запчастей Case CX130 - (06-01) - TRACK DRIVE ASSY (DAC0713099 - DAC0713101) (06) - POWER TRAIN
4
5
2
3
3a
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNA10460

MOTO-REDUCTION GEAR

Travel, Incl. 2 - 3A; Replaces 169351A1

2шт.

2

LJ013420

HYDRAULIC MOTOR

See Figure 06-03; Replaces LJ00778

1шт.

3

LN00072

REDUCER

See Figure 06-02, Replaces 164693A1

1шт.

3a

LJ00785

VALVE

See Figure 06-04

1шт.

4

166348A1

BOLT

With Attached Washer

62шт.

5

150866A1

WHEEL GEAR

2шт.
