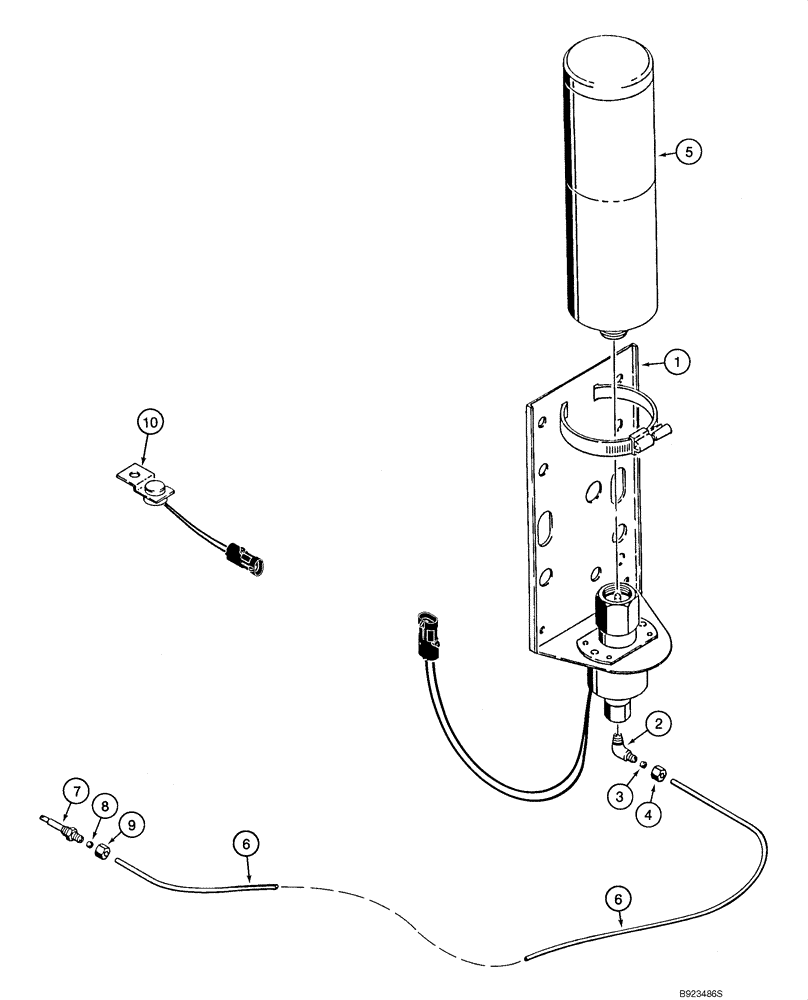

Запчасти Case CX130 (04-15) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

L126094

VALVE

Incl.1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

222-650

SLEEVE,1/8" Tube, Comp

1шт.

4

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

5

A171940

CYLINDER

Starting Fluid

1шт.

6

116992A2

TUBE,0.125 mm OD

2693 mm (106 in), Cut From L60539X

1шт.

A172900

NOZZLE CAP

Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

10

L126191

THERMOSTATIC SWITCH

1шт.
