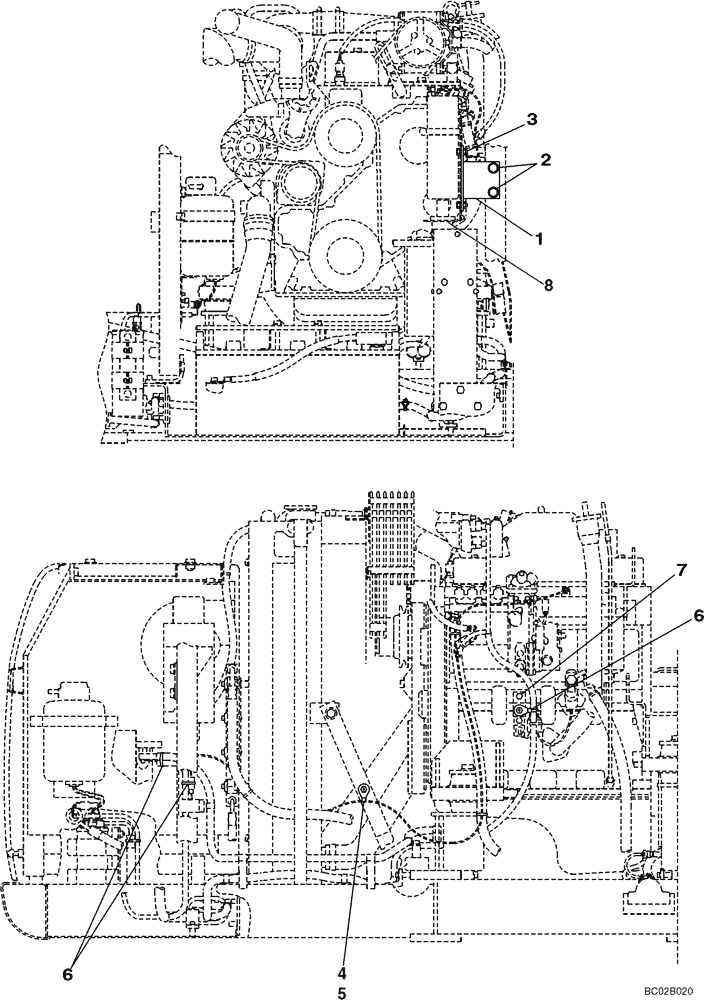

Запчасти Case CX130 (04-14) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

KNR0686

BRACKET

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

4

KHR2583

CLAMP

1шт.

5

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

6

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

7

167518A1

BOLT

1шт.

8

L126094

VALVE

See Figure 04-15

1шт.
