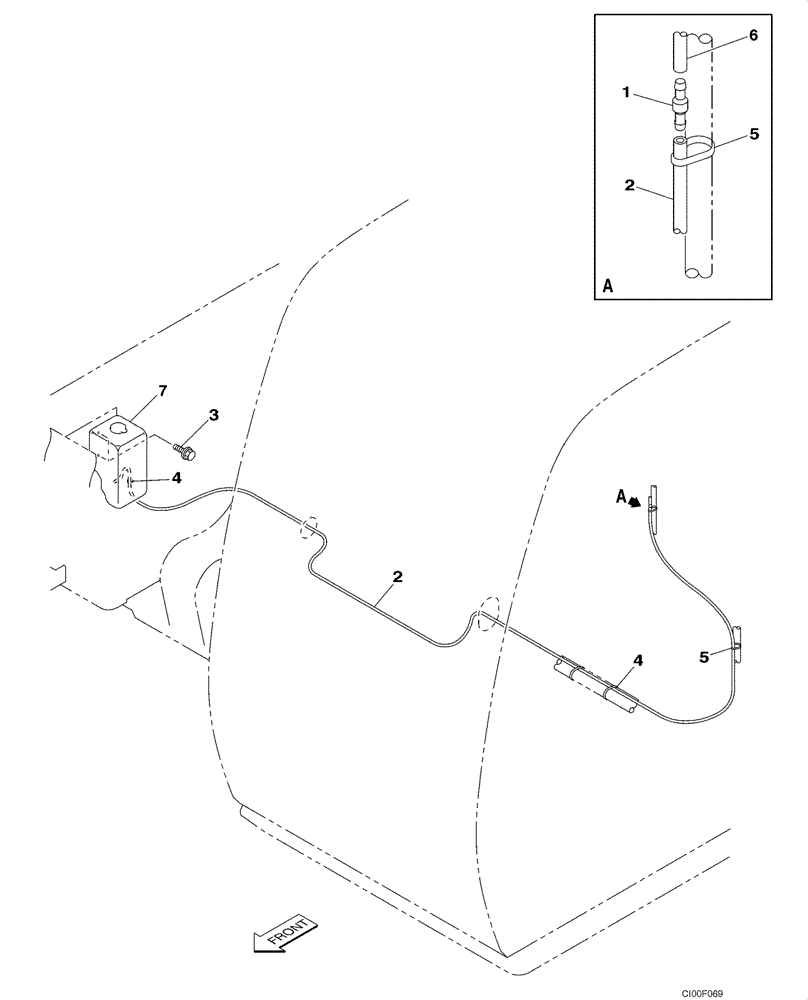

Запчасти Case CX130 (04-11) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

152824A1

ADAPTER

1шт.

2

KHR2395

FLEXIBLE HOSE

3000 mm (118-1/8 in), Cut From 162127A1

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

4

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

5

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

6

KHN2747

HOSE

See Figure 04-05, REF 123

1шт.

7

161374A1

RESERVOIR ASSY.

See Figure 04-05, REF 19

1шт.
