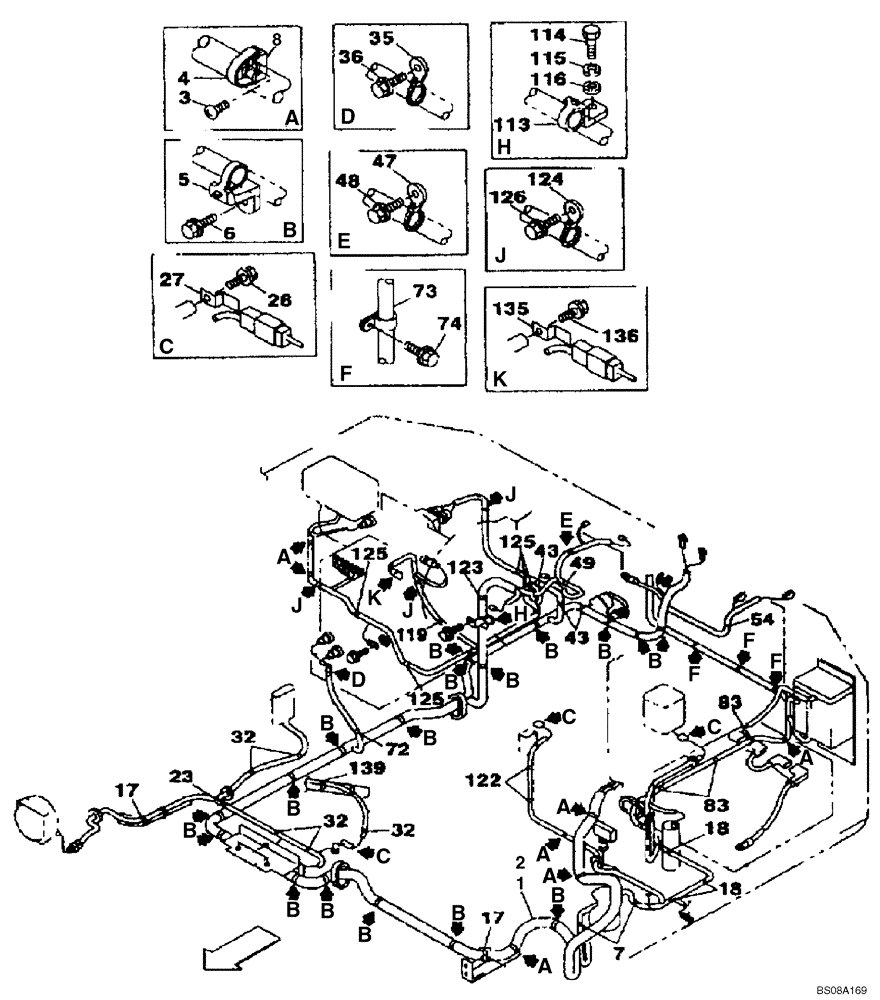

Запчасти Case CX130 (04-02) - HARNESS, MAIN - CLAMPS AND RETAINERS (04) - ELECTRICAL SYSTEMS

1

KNR0679

HARNESS

Models With Uchida Hydraulic Pump, DAC0713099 - DAC0713245

1шт.

2

KNR0742

WIRE HARNESS

Replaces KNR0723, Models With Kawasaki Hydraulic Pump, DAC0713246 -

1шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

4

150496A1

MOUNTING CLIP

250 mm (10 in)

7шт.

5

KHR2580

CLAMP

17шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

17шт.

7

KHR2787

CLAMP

2шт.

8

150860A1

COLLAR

7шт.

17

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

18

KHR2787

CLAMP

3шт.

23

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

27

165405A1

CLIP

4шт.

28

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

32

KHR2787

CLAMP

5шт.

35

KHR2583

CLAMP

1шт.

36

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

43

KHR2583

CLAMP

3шт.

47

KHR2584

CLAMP

1шт.

48

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

49

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

54

KHR2787

CLAMP

1шт.

72

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

73

162149A1

COLLAR

7шт.

74

167320A1

BOLT,Spcl, M8 x 20mm

7шт.

83

KHR2787

CLAMP

3шт.

113

KHR2582

CLAMP

1шт.

114

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

115

892-11010

LOCK WASHER,M10

1шт.

119

150496A1

MOUNTING CLIP

250 mm (10 in)

4шт.

122

KHR2787

CLAMP

3шт.

123

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

124

KHR2787

CLAMP

3шт.

125

KHR2583

CLAMP

6шт.

126

159602A1

BOLT,Sems, Hex, M6 x 16mm

6шт.

135

165405A1

CLIP

1шт.

136

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

139

150496A1

MOUNTING CLIP

250 mm (10 in)

10шт.

116

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
