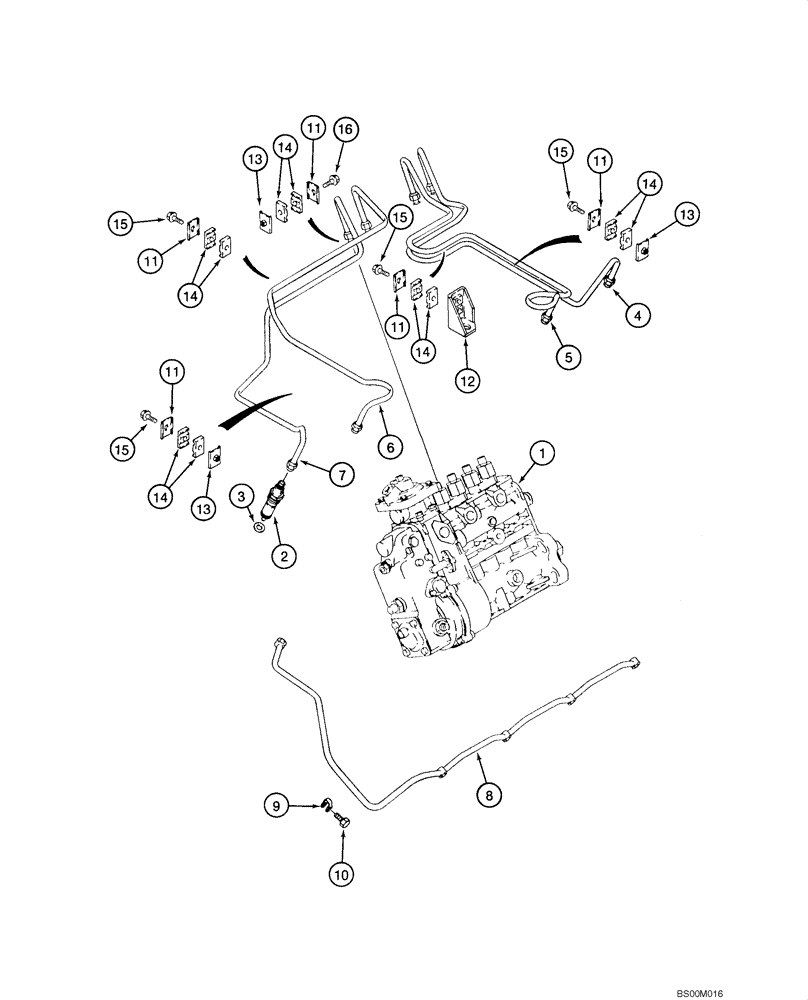

Запчасти Case CX130 (03-04) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

*

4TA-390 Emissions Certified Engine

1шт.

1

J928603

PUMP, FUEL INJECTION

PUMP, INJECTION Fuel Injection, See Figure 03-07

1шт.

2

J929490

NOZZLE INJECTION

Fuel Injection, See Figure 03-08

4шт.

2

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

4шт.

2

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

3

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm, Replaces J906659

4шт.

4

J932054

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 1 Cylinder

1шт.

5

J932055

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 2 Cylinder

1шт.

6

J932056

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 3 Cylinder

1шт.

7

J932057

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

No. 4 Cylinder

1шт.

8

J284579

TUBE

Manifold, Replaces J933660

1шт.

9

J903380

SEAL

4шт.

10

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

11

CURJ904711

CLAMP

5шт.

12

J917777

BRACE

2шт.

13

J917717

BRACE

3шт.

14

J917746

CLAMP

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

1шт.
