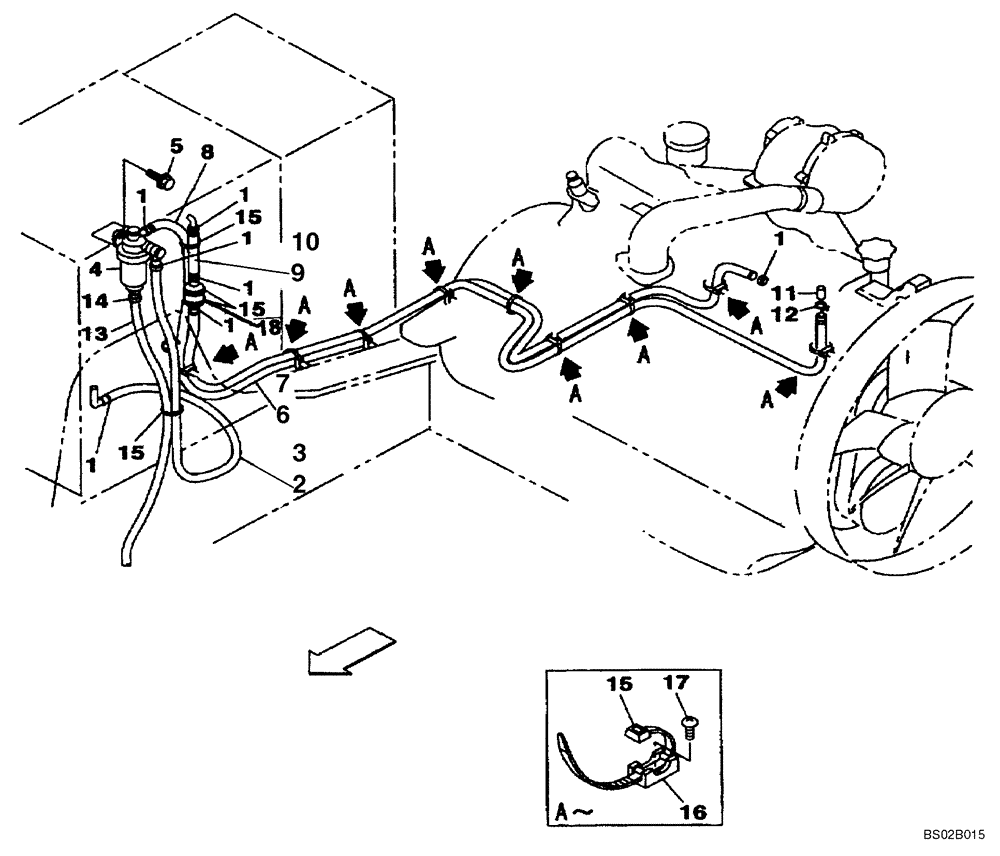

Запчасти Case CX130 (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KHH0405

MOUNTING CLIP

7шт.

2

KHH0406

HOSE

1шт.

3

158063A1

PLASTIC-RUBBER TUBE

1шт.

4

KRH1343

WATER TRAP

Incl. 4A - 4C, Component Parts Not Illustrated

1шт.

4a

154641A1

O-RING

1шт.

4b

154463A1

O-RING

1шт.

4c

KHH0397

BOLT

1шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

7

KHH0433

FUEL HOSE

1шт.

8

162933A1

PLASTIC-RUBBER TUBE

2шт.

9

KHH0432

FUEL HOSE

1шт.

9

KHH0434

FUEL HOSE

1шт.

10

KHR3357

PLASTIC-RUBBER TUBE

1шт.

11

151470A1

SPACER

1шт.

12

153043A1

COLLAR

1шт.

13

157630A1

TUBE,9.5 mm ID, 14.5 mm OD

800 mm (31-1/2 in)

1шт.

14

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

15

150496A1

MOUNTING CLIP

250 mm (10 in)

13шт.

16

150860A1

COLLAR

9шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

9шт.

18

D139225

FILTER, FUEL

In-Line

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
