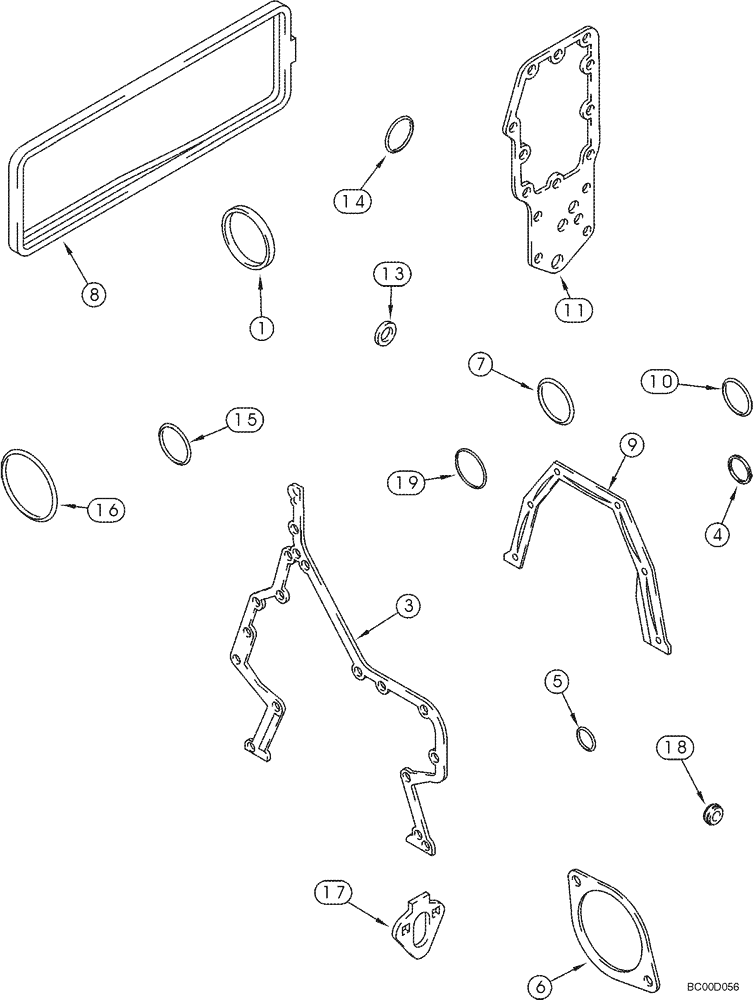

Запчасти Case CX130 (02-24) - GASKET KIT (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A78036

ENGINE GASKET KIT

Incl. 1 - 20, Replaces A77965

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-07, REF 20

1шт.

3

J938156

GASKET,0.79mm Thk

See Figure 02-07, REF 5

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-07, REF 11

1шт.

5

J913994

O-RING

See Figure 02-07, REF 14

1шт.

6

J929751

GASKET

See Figure 02-07, REF 16

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure 02-06, Ref 3

1шт.

8

J283767

GASKET,7.4mm Thk

See Figure 02-18, REF 22

1шт.

9

J938159

GASKET

Not Used In This Application

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-18, REF 32

1шт.

11

J942914

GASKET

See Figure 02-12, REF 13

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-13, REF 12

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, See Figure 02-19,REF 7

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Figure 02-12, REF 6

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-21, REF 2

1шт.

17

J939258

GASKET,1.21mm Thk

See Figure 03-05, REF 4

1шт.

18

J928759

SEALING WASHER

See Figure 02-18, REF 19

6шт.

19

J935032

SEAL

See Figure 03-07, REF 37

1шт.

20

J931607

GASKET

Not Used In This Application

1шт.
