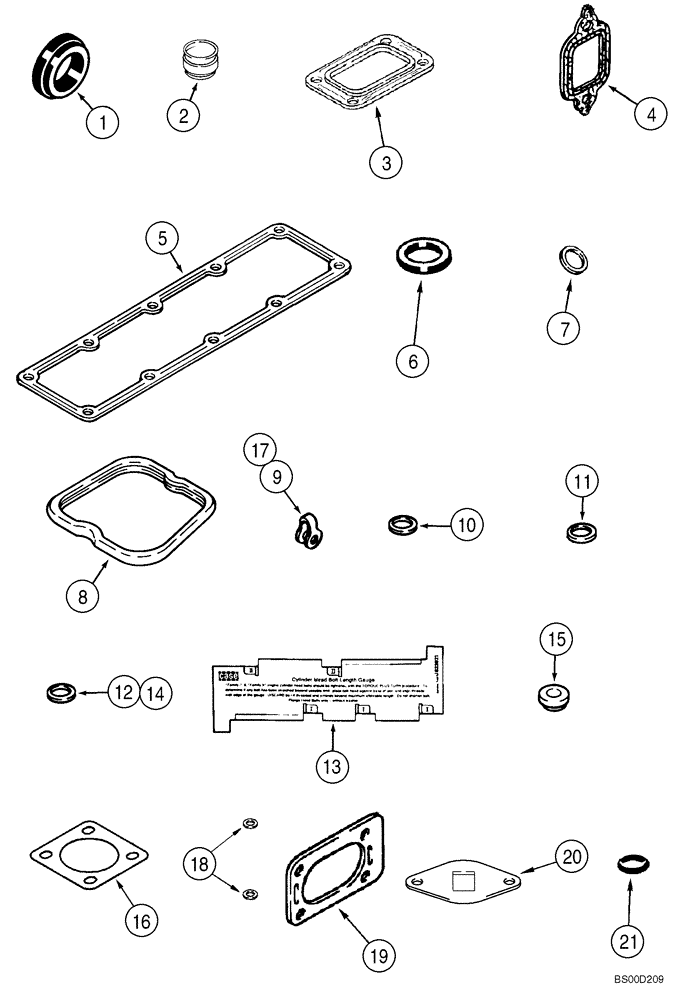

Запчасти Case CX130 (02-23) - GASKET KIT (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

Valve Grind

1шт.

A77975

GASKET KIT

Incl. 1 - 21

1шт.

1

J923331

GASKET

See Figure 02-14, REF 11

1шт.

2

J921640

SEAL

See Figure 02-15, REF 8

8шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-09, REF 2

1шт.

4

J927154

GASKET,0.38mm Thk

Exhaust, See Figure 02-08, REF 2

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Intake, See Figure 02-08, REF 5

1шт.

6

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Not Used In This Application

1шт.

7

J900808

SEAL

Not Used In This Application

4шт.

8

J930906

GASKET

See Figure 02-14, REF 4

4шт.

9

J903380

SEAL

See Figure 03-04, REF 9

4шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm, See Figure 03-04, REF 3; 03-08, REF 3

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-08, REF 2

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, Not Used In This Application

4шт.

13

J823921

GAUGE

1шт.

14

J930324

SEAL

0,5 mm, Not Used In This Application

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-14, REF 5

4шт.

16

J912220

GASKET,0.4mm Thk

Not Used In This Application

1шт.

17

J903380

SEAL

Not Used In This Application

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Figure 03-05, REF 9

2шт.

19

J914856

GASKET,1.02mm Thk

See Figure 02-09, REF 19

1шт.

20

J937706

GASKET,0.79mm Thk

See Figure 02-09, REF 11

1шт.

21

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Used In This Application

4шт.

Note: When the valve grind gasket kit is used, also order the required cylinder head gasket, Figure 02-14.

1шт.

Nota : Quand le kit de joint meulé du distributeur est utilisé, commander aussi le joint de tête de vérin nécessaire, Figure 02-14.

1шт.

Nota: Cuando se use el juego de juntas de la válvula rectificadora, pedir también la junta de la cabeza del cilindro requerida, Figure 02-14.

1шт.
