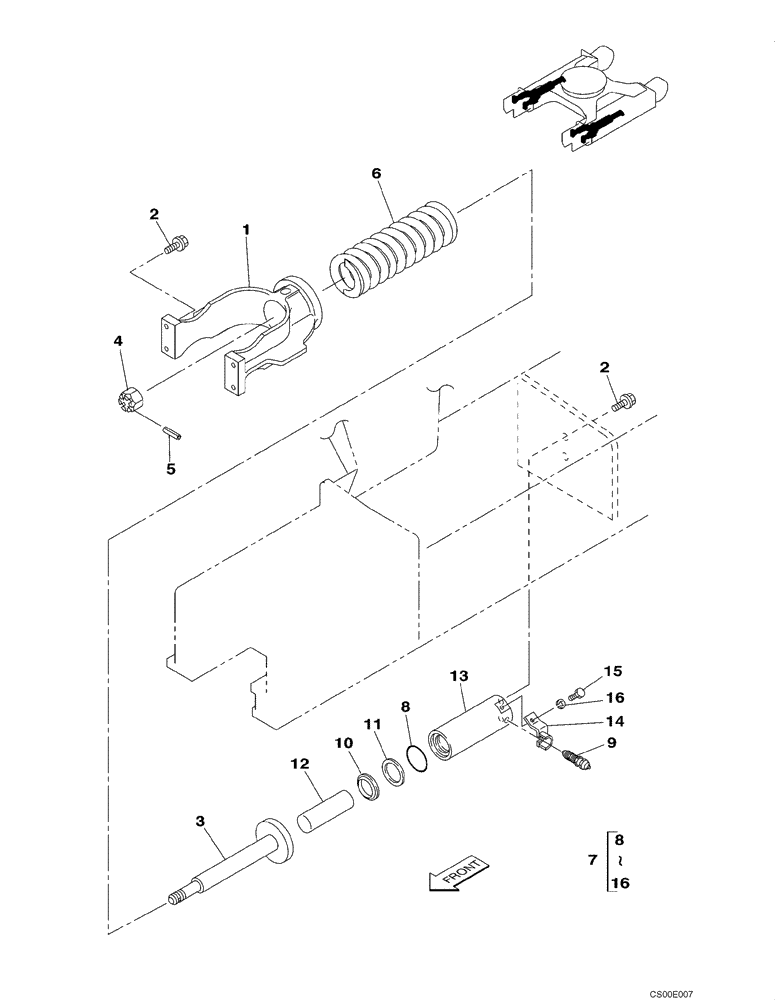

Запчасти Case CX130 (05-11A) - TRACK - ADJUSTER (DAC0713102 - ) (11) - TRACKS/STEERING

1

KMA1299

FORK

2шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

3

KNA0802

ROD,THREADED

THREADED ROD Replaces KNA0691

2шт.

4

165R039HSN

NUT

NUT; Replaces 112246A1

2шт.

5

738-1663

LOCK PIN,M6 x 63, Slotted

2шт.

6

KNA0692

TENSION SPRING

Recoil

2шт.

7

150903A1

CYLINDER

Track Adjuster, Incl. 8 - 16

2шт.

8

154656A1

O-RING

1шт.

9

150107A1

LUBE NIPPLE

1шт.

10

150557A1

SEAL,65mm ID x 79mm OD x 11mm Thk

1шт.

11

KHA10090

BACK-UP RING

OD 75mm - ID 65mm. - Thk 1.9mm

1шт.

12

150756A1

JACK PISTON

1шт.

13

150907A1

CYLINDER ASSY.

1шт.

14

151234A1

BRACKET

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.
