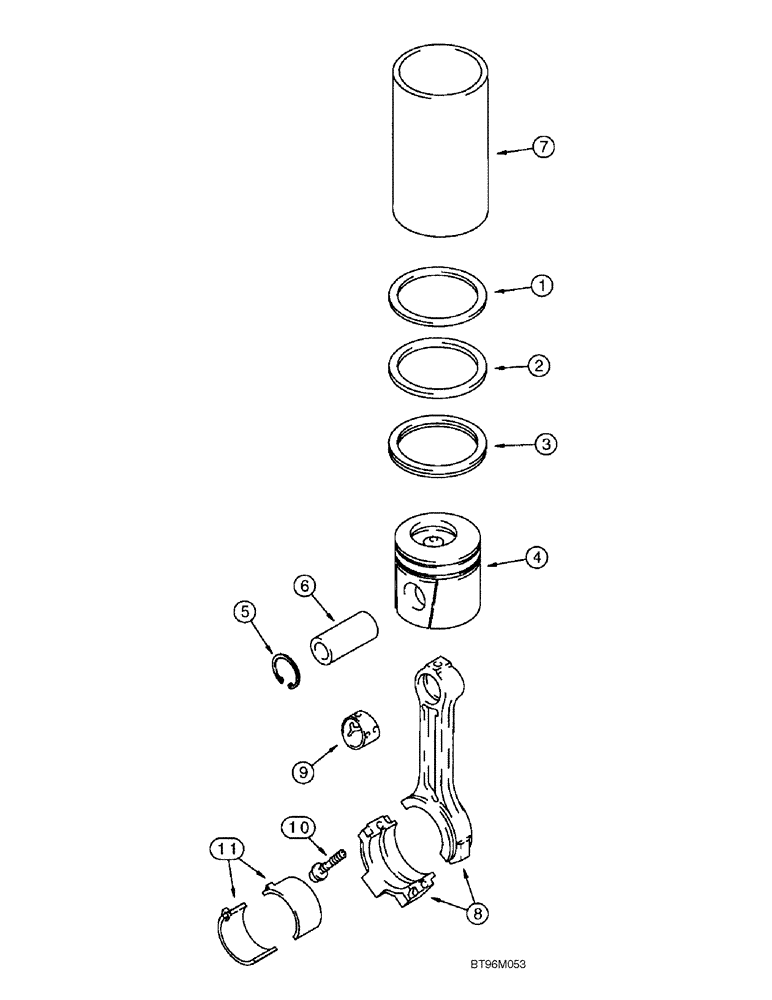

Запчасти Case CX130 (02-22) - PISTONS - CONNECTING RODS (02) - ENGINE

*

4TA-390 Emissions Certified Engine

1шт.

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard, Incl. 1 - 5

4шт.

J802746

PISTON RING SET

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

4шт.

J802764

PISTON & RINGS KIT

0,5 mm, Oversize, Incl. 1 - 5

4шт.

J802422

PISTON RING SET

0,5 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

4шт.

J802765

PISTON & RINGS KIT

1,0 mm, Oversize, Incl. 1 - 5

4шт.

J802423

PISTON RING SET

1,0 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

4шт.

7

J904166

SLEEVE

Connecting Rods

1шт.

J942581

ROD, CONNECTING

Incl. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

4шт.

84145405R

REMAN-CONNECTING ROD

CX130, Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Oversize

4шт.

11

A77467

BEARING LINER

0,50 mm, Oversize

4шт.

11

A77468

BEARING SET

0,75 mm, Oversize

4шт.

11

A77469

BEARING SET

1,0 mm, Oversize

4шт.
