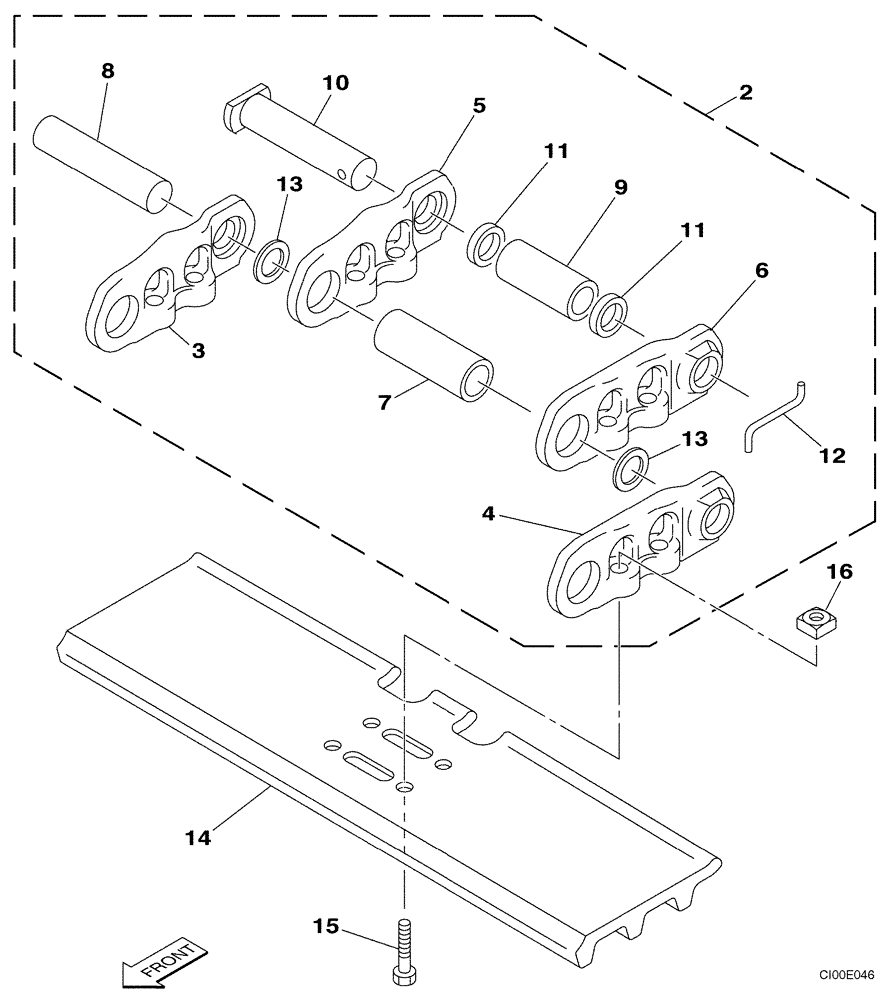

Запчасти Case CX130 (05-05) - 600 MM (23-5/8 IN) TRACK - CHAINS (DAC0713099 - DAC0713101) (11) - TRACKS/STEERING

600 mm (23-5/8 in)

1шт.

2

168272A1

CHAIN (CE)

Track, Incl. 3 - 13

2шт.

3

168860A1

LINK CHAIN

Track, Right Hand

43шт.

4

168861A1

LINK CHAIN

Track, Left Hand

43шт.

5

168862A1

LINK CHAIN

Master, Right Hand

1шт.

6

168863A1

LINK CHAIN

Master, Left Hand

1шт.

7

168864A1

BUSHING

43шт.

8

168865A1

PIN

43шт.

9

168646A1

BUSHING

1шт.

10

168866A1

PIN

Master

1шт.

11

168867A1

COLLAR

2шт.

12

168650A1

COTTER PIN

1шт.

13

168648A1

SEAL

86шт.

14

151091A1

TRACK SHOE

44шт.

15

161062A1

BOLT,Spher Hex, M16 x 1.5 x 46mm

Shoe

176шт.

16

161063A1

NUT

176шт.

KNP0640BECA

LINK

Aftermarket Track Chain Assembly, Also Order KMP1288BECA Nuts

1шт.

KMP1288BECA

NUT

1шт.
