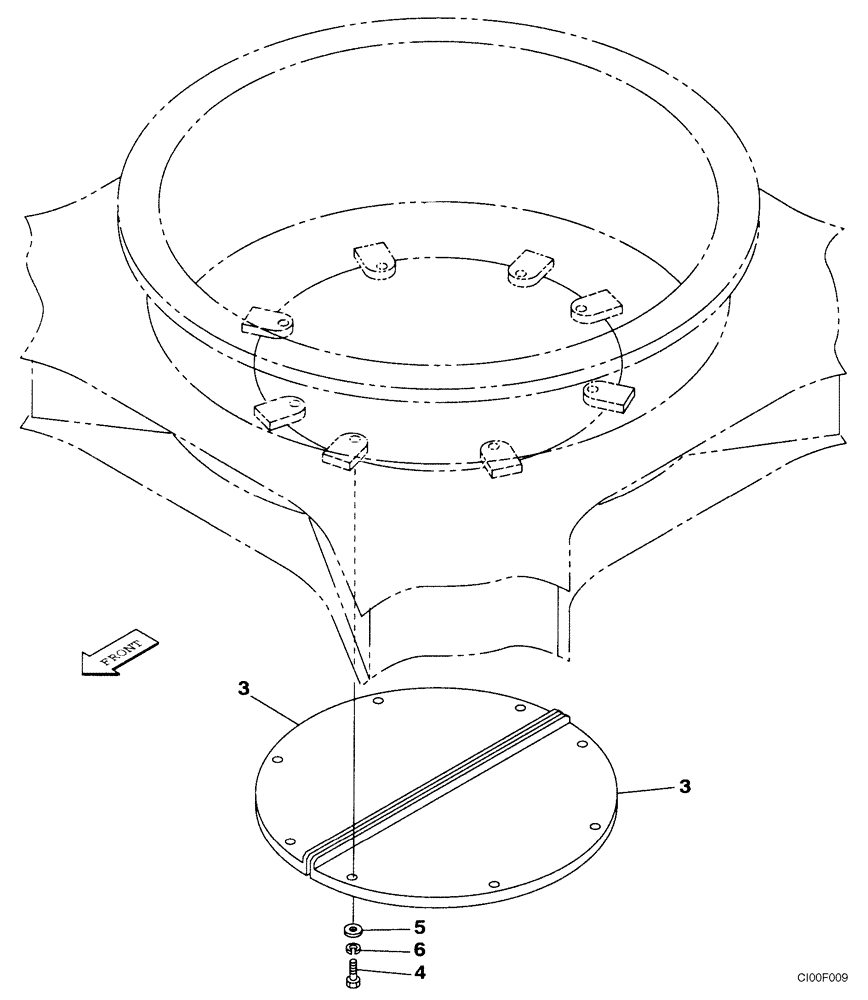

Запчасти Case CX130 (05-03) - UNDERCARRIAGE COVER, LOWER (DAC0713099 - DAC0713101) (11) - TRACKS/STEERING

1

KRA1555

FRAME

Incl. 2, Not Illustrated

1шт.

2

163149A1

BAR

8шт.

3

159683A1

COVER

Undercarriage, Turning Joint Protection

2шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

5

150811A1

WASHER

M12

8шт.

6

892-11012

LOCK WASHER,M12

8шт.
