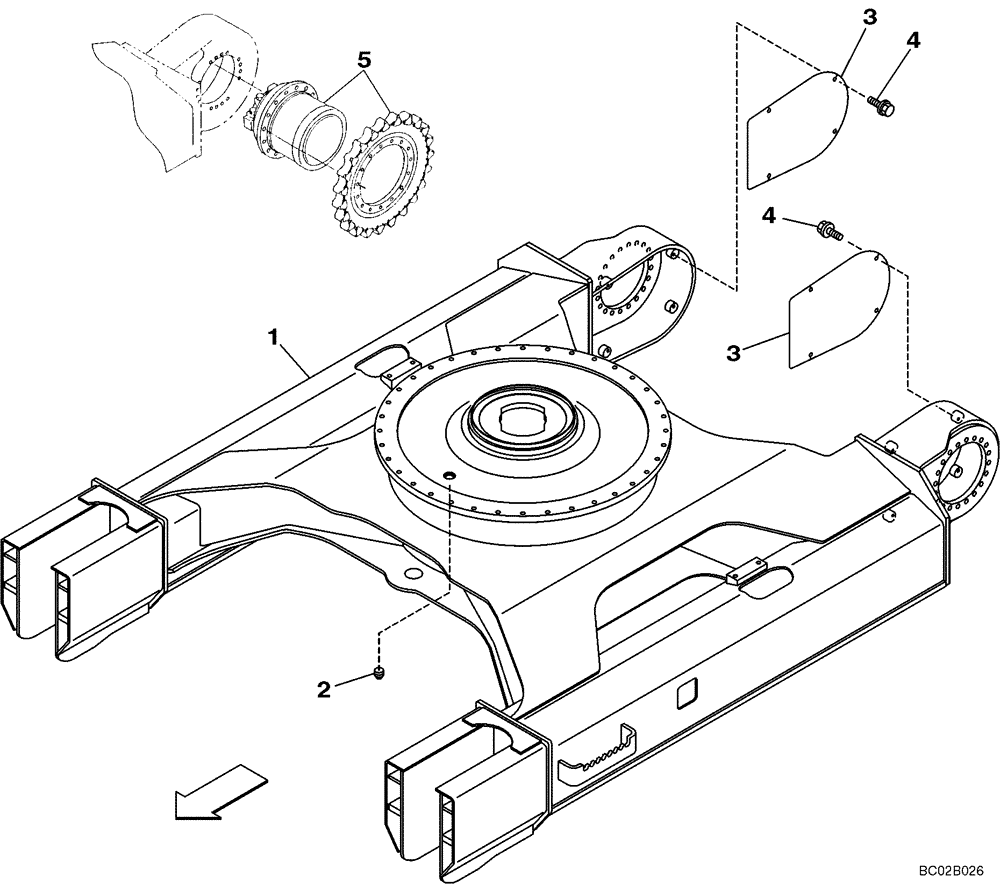

Запчасти Case CX130 (05-01A) - UNDERCARRIAGE (DAC0713102 - ) (11) - TRACKS/STEERING

1

KNA0795

FRAME

1шт.

2

157221A1

PLUG

1шт.

3

KMA1307

COVER

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

5

169351A1

MOTO-REDUCTION GEAR

Travel, See Figure 06-01

2шт.
