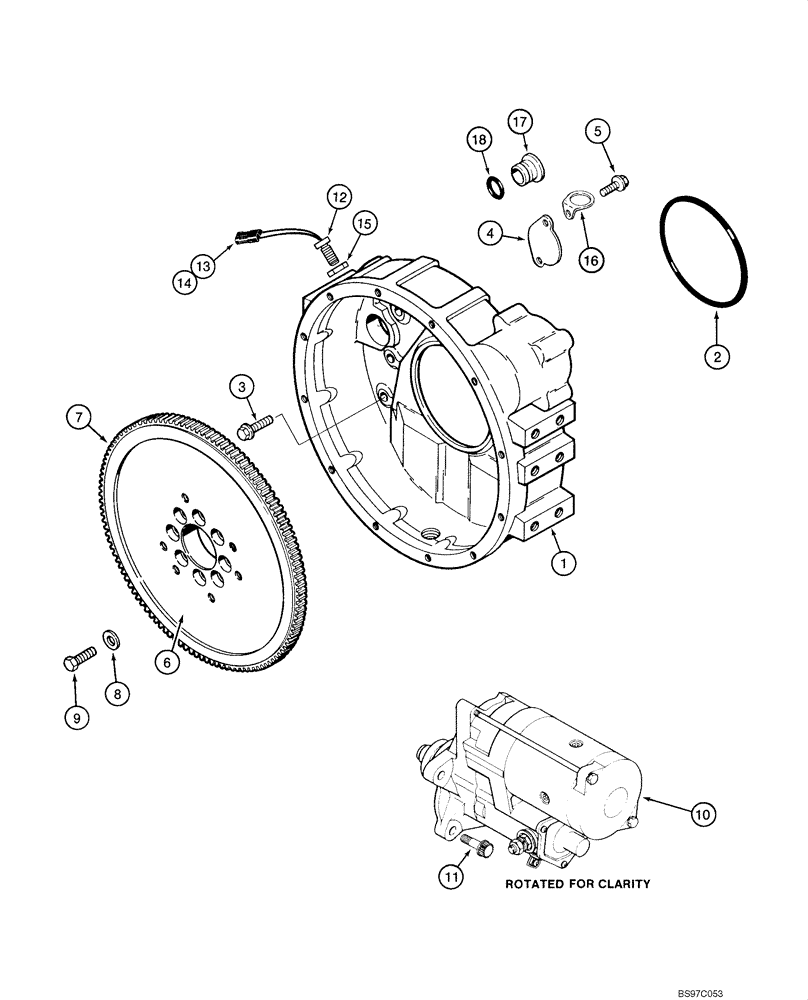

Запчасти Case CX130 (02-21) - FLYWHEEL HOUSING (02) - ENGINE

*

4TA-390 Emissions Certified Engine

1шт.

1

J937426

HOUSING

Flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

6

J926188

FLYWHEEL

Incl. 7

1шт.

7

J905427

GEAR

1шт.

8

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

10

87436686

STARTING MOTOR

Component Parts Not Available at Time of Printing, Replaces J934119

1шт.

10

87436686R

REMAN-STARTER

CX130

1шт.

10

87436686C

CORE-STARTER

Return Number

1шт.

11

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

2шт.

A187584

SENSOR

Engine RPM, Incl. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Sender

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

14

225127C1

PLUG

2шт.

15

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

16

J928989

CLIP

1шт.

17

J910248

PLUG

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
