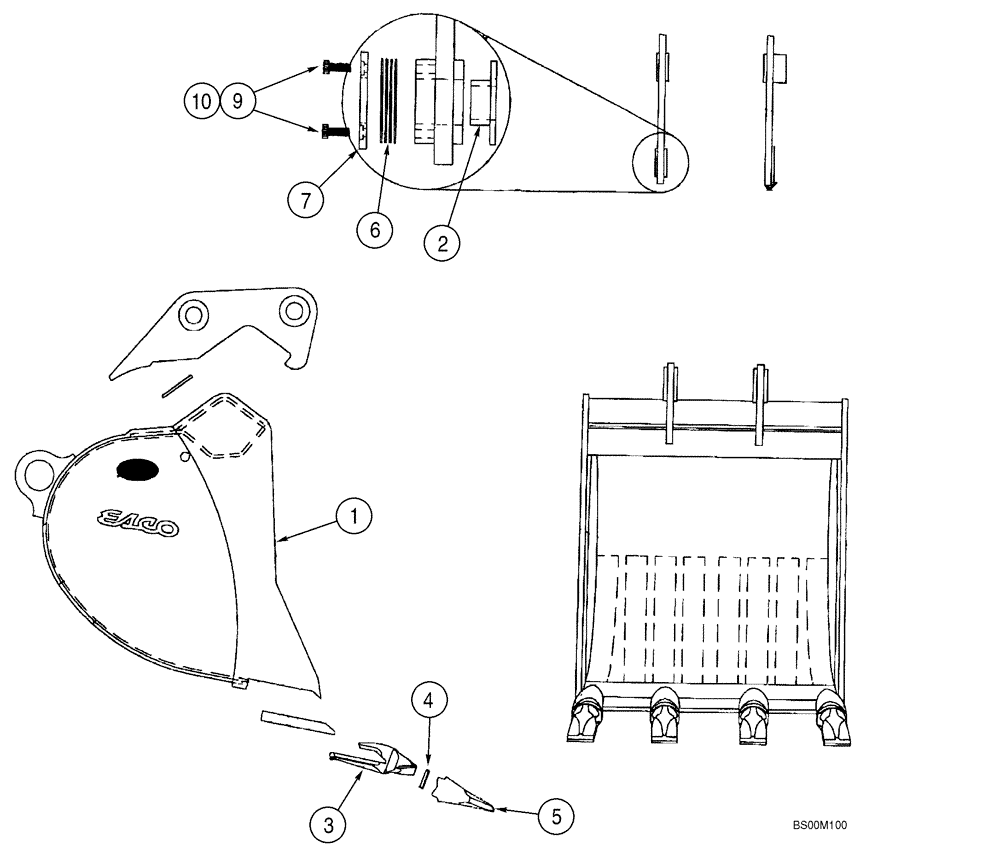

Запчасти Case CX130 (09-51) - BUCKETS - ESCO (09) - CHASSIS

Standard Duty Plate

1шт.

1

REF

INSTRUCTION

Bucket, With 4 Teeth, 0,38 cu m (0,5 cu yd)

1шт.

1

REF

INSTRUCTION

Bucket, With 4 Teeth, 0,50 cu m (0,66 cu yd)

1шт.

1

REF

INSTRUCTION

Bucket, With 5 Teeth, 0,63 cu m (0,82cu yd)

1шт.

1

REF

INSTRUCTION

Bucket, With 6 Teeth, 0,75 cu m (0,98 cu yd)

1шт.

2

372025A1

BUSHING

1шт.

3

127557A1

ADAPTER

4-6шт.

4

233792A1

BUCKET TOOTH KEY

4-6шт.

5

127558A1

BUCKET TOOTH

4-6шт.

6

378626A1

SHIM

6шт.

7

378627A1

PLATE

1шт.

8

378628A1

PIN

Not Illustrated

2шт.

9

892-11012

LOCK WASHER,M12

4шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

378641A1

KIT

Incl. 2, 6 - 10

1шт.
