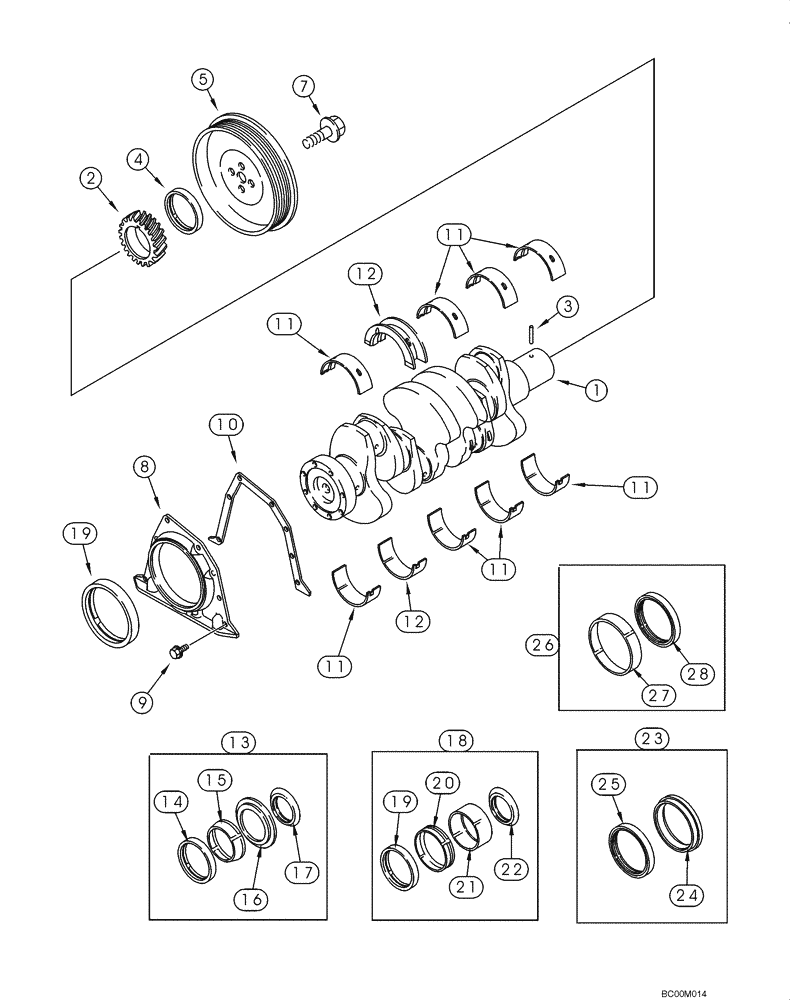

Запчасти Case CX130 (02-20) - CRANKSHAFT (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

JR908031

CRANKCASE

Remanufactured, N.A. Only

1шт.

J929036R

REMAN-CRANKSHAFT

CX130, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

CX130, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889, REF 13

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

4шт.

11

A77472

BEARING SET

0,25 mm, Undersize

4шт.

11

A77474

BEARING SET

0,50 mm, Undersize

4шт.

11

A77476

BEARING SET

0,75 mm, Undersize

4шт.

11

A77478

BEARING SET

1,0 mm, Undersize

4шт.

12

A77896

BEARING SET

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize

1шт.

13

A77889

SEAL PACKAGE

Front, Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Front, Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Rear, Incl. 24, 24A, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

1шт.

26

A77810

SERVICE KIT

Rear, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
