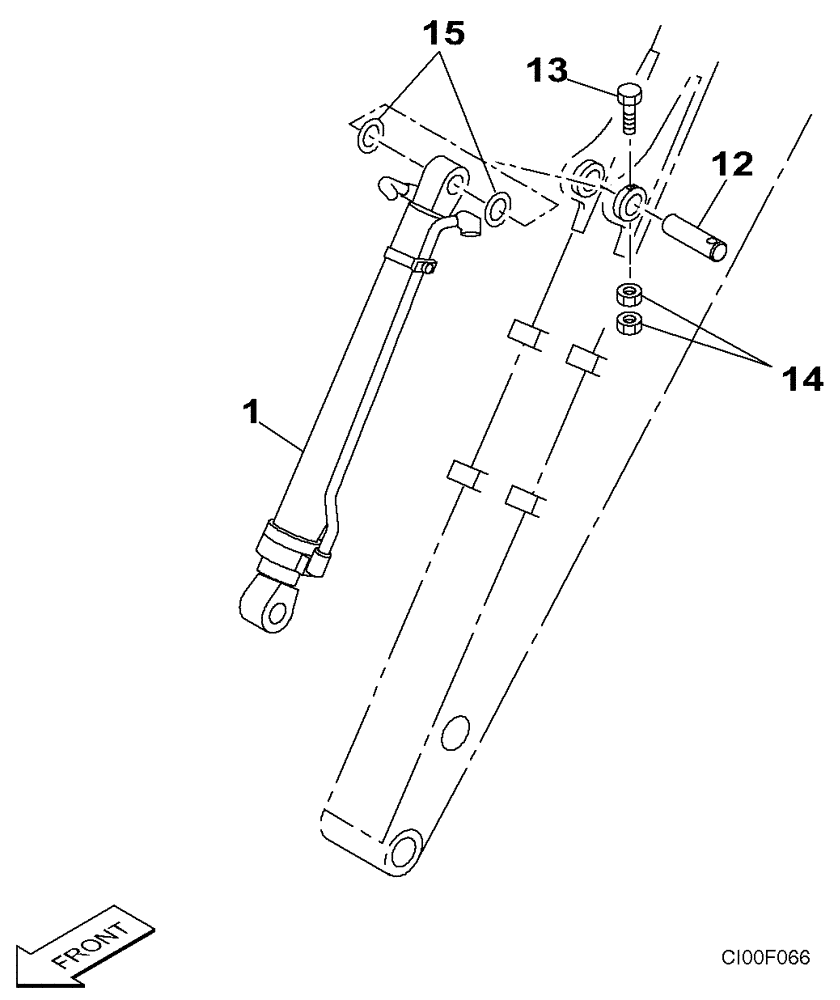

Запчасти Case CX130 (09-45) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS

1

KNV1618

BUCKET CYLINDER

Bucket, See Figure 08-108

1шт.

12

160730A1

PIN,65mm OD x 214mm L

1шт.

13

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Replaces 514-1111

1шт.

14

829-13416

NUT,M16 x 1.5, Cl 10

2шт.

15

160734A1

SHIM

2шт.
