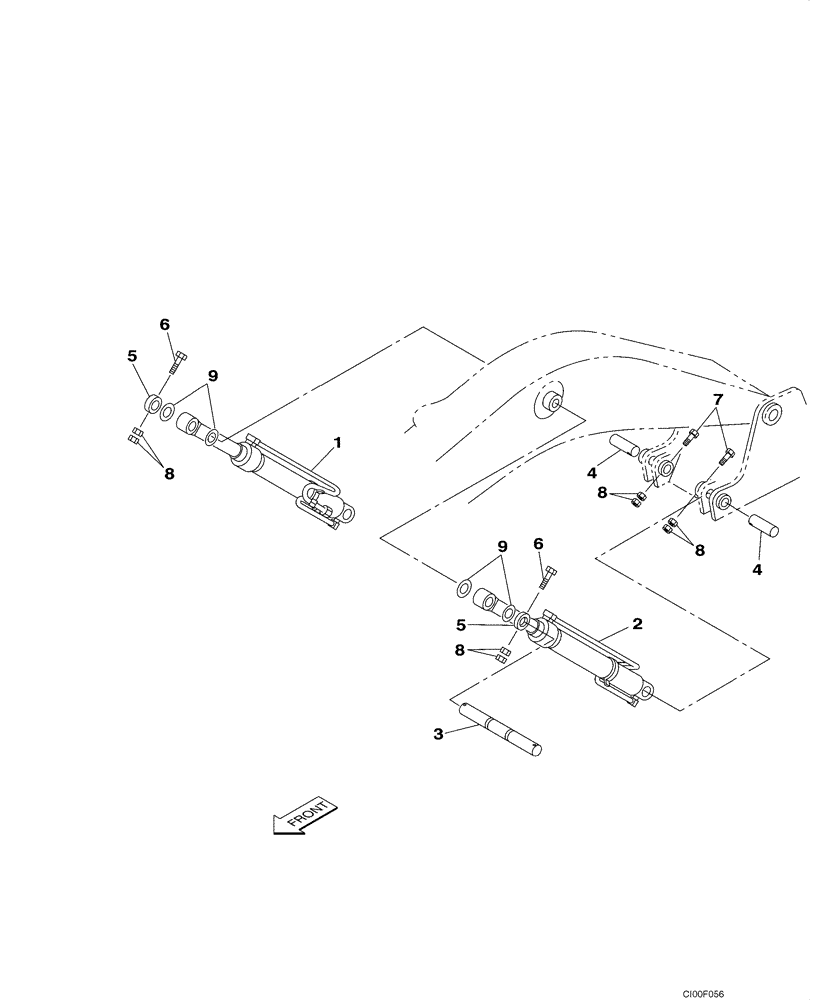

Запчасти Case CX130 (09-41) - BOOM CYLINDER - MOUNTING (09) - CHASSIS

1

KNV1615

HYDRAULIC CYLINDER

Right Hand, Models Without Load Hold, See Figure 08-102

1шт.

1

KNV1619

HYDRAULIC CYLINDER

Right Hand, Models With Load Hold, See Figure 08-104

1шт.

2

KNV1616

HYDRAULIC CYLINDER

Left Hand, Models Without Load Hold, See Figure 08-103

1шт.

2

KNV1620

HYDRAULIC CYLINDER

Left Hand, Models With Load Hold, See Figure 08-105

1шт.

3

KNV1266

PIN

1шт.

4

KNV1267

PIN

2шт.

5

KNV1247

RING, LOCKING

RING, LOCK

2шт.

6

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

7

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

2шт.

8

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

9

160745A1

ADJUSTING PLATE

4шт.
