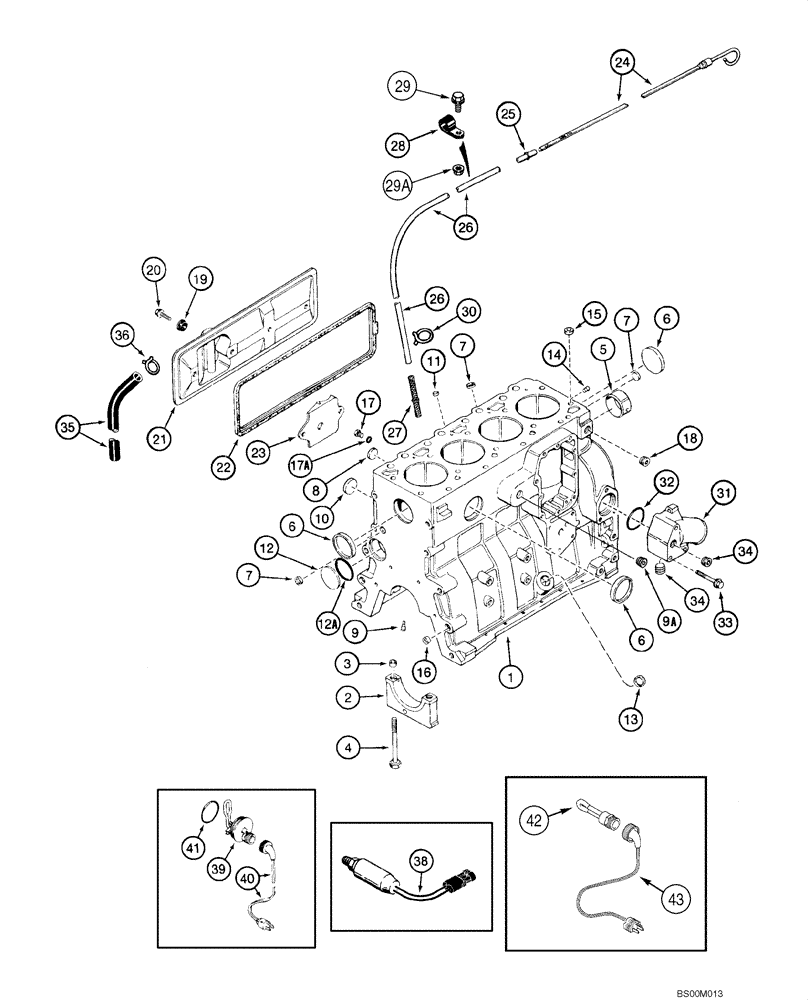

Запчасти Case CX130 (02-18) - CYLINDER BLOCK (02) - ENGINE
№
Артикул
Название
Примечание
Количество
*
4TA-390 Emissions Certified Engine
1шт.
379541A1
ENGINE ASSEMBLY
ENGINE ASSY Complete, Includes All Parts Except Fan, Air Cleaner, Muffler and Exhaust Pipe, For Service Order 234277A2
1шт.
234277A2
BASIC ENGINE
Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler.; See N
1шт.
234277A2R
REMAN-BASIC ENGINE
Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler.
1шт.
234277A2C
CORE-BASIC ENGINE
Return Number
1шт.
J933648
SHORT ENGINE
Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings
1шт.
J933648R
SHORT ENGINE
Remanufactured
1шт.
J933648C
CORE-ENGINE
Return Number
1шт.
1
87444172
BLOCK ASSY.
Incl. 2 - 8
1шт.
2
J936791
BEARING CAP
Incl. 3
5шт.
3
J900068
BEARING WASHER
18 mm OD
10шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
5
REF
INSTRUCTION
Bushing, See Figure 02-17
1шт.
6
A77782
PLUG
58 mm
3шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Incl. 9 - 18D
1шт.
9
J937214
NOZZLE CAP
4 Used In This Application
6шт.
9a
A77505
PLUG
3/4 PT
1шт.
10
J900958
PLUG
32 mm OD
1шт.
11
J900955
PLUG
10 mm OD
3шт.
12
172599
PLUG,Exp, 2 3/8"
60 mm OD
1шт.
12a
41-3038
PLUG,Exp, 2 3/8"
1шт.
13
J920706
PLUG
22 mm, Not Used In This Application
3шт.
15
J902343
DOWEL
16 mm OD
2шт.
16
J900068
BEARING WASHER
18 mm OD
2шт.
17
J678923
PLUG,M10 x 1
10 mm, Includes 17A, Two Used In This Application
3шт.
17a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
18
A77429
PLUG
1/2 PT
1шт.
18a
J678921
PLUG
14 mm, Includes 18B, Not Used In This Application, Not Illustrated
1шт.
18b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not Illustrated
1шт.
18c
J932296
PLUG
Incl. 18D, Not Used In This Application, Not Illustrated
1шт.
18d
J330478
O-RING,0.07" Thk x 0.676" ID
Not Illustrated
1шт.
19
J900267
SEAL
4шт.
20
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
4шт.
21
J936186
COVER
1шт.
22
J283767
GASKET,7.4mm Thk
1шт.
23
J907586
BAFFLE
1шт.
24
J933113
DIPSTICK
1шт.
25
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
26
J933114
TUBE,9.53 mm ID x 12.7 mm OD x 600 mm L
1шт.
27
A77645
TUBE
1шт.
28
A77508
CLAMP
7/16" ID
1шт.
29
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
1шт.
29a
825-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 8
1шт.
30
214-1308
HOSE CLAMP,#8, 1/2", Spring
2шт.
31
J934878
MANIFOLD
1шт.
32
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
50 mm ID
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
1981643C1
HOSE
800 mm (31-1/2 in)
1шт.
38
1546461C2
SWITCH
Oil Pressure
1шт.
*
Engine Block Heater
1шт.
*
196803A1
KIT
120V, Incl. 39 - 41
1шт.
39
NSS
NOT SOLD SEPARAT
Element
1шт.
40
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
41
J910517
O-RING
1шт.
*
309651A1
KIT
120V, Incl. 42, 43
1шт.
42
NSS
NOT SOLD SEPARAT
Element
1шт.
43
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
*
Engine Overhaul Kit
1шт.
*
A77887
PACKAGE,SERVICE
Incl. 44 - 51, Not Illustrated
1шт.
44
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
See Figure 02-22
4шт.
45
J934047
PIN,40mm OD x 82.68mm L
See Figure 02-22
4шт.
46
A77465
BEARING SET
See Figure 02-22
4шт.
47
A77405
CRANKSHAFT BEARING
See Figure 02-20
4шт.
48
A77896
BEARING SET
See Figure 02-20
1шт.
49
A77975
GASKET KIT
See Figure 02-23
1шт.
50
J283333
CYLINDER HEAD GASKET,2.32mm Thk
See Figure 02-14
1шт.
51
A77673
GASKET KIT
Not Used In This Application
1шт.
Выбрано товаров: 71
