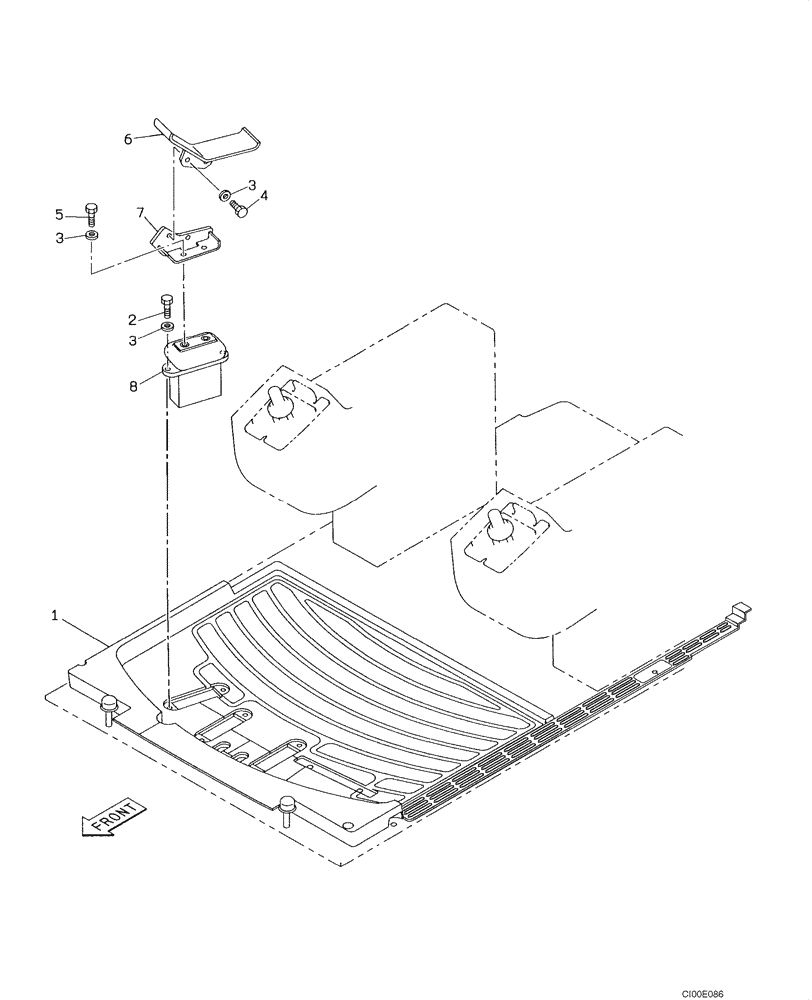

Запчасти Case CX130 (09-14) - AUXILIARY HYDRAULIC CONTROL (09) - CHASSIS

1

REF

INSTRUCTION

Mat; See Figure 09-13

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

M10 x 25; 10,9

2шт.

3

150604A1

WASHER

6шт.

4

KHJ1820

BOLT,Hex Skt Hd

2шт.

5

165404A1

BOLT,Hex Skt, M10 x 20mm

2шт.

6

KHJ1629

PEDAL

1шт.

7

KHJ1643

BRACKET

1шт.

8

KRJ5864

CONTROL BLOCK

See Figure 08-100

1шт.
