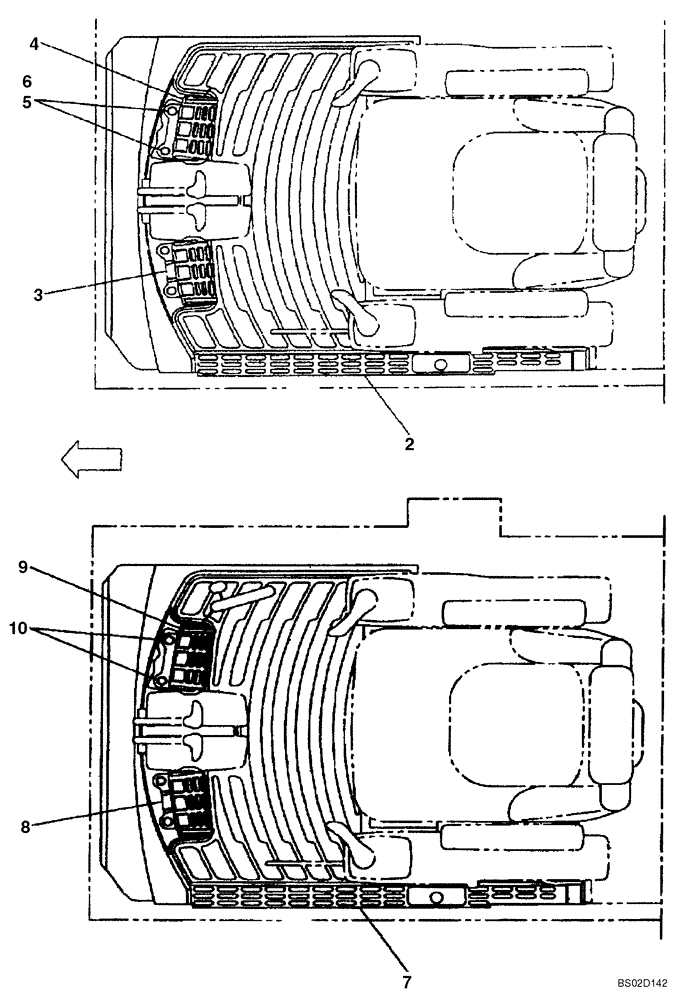

Запчасти Case CX130 (09-12) - MAT, FLOOR - OPERATORS COMPARTMENT (09) - CHASSIS

Standard Models

1шт.

2

KHJ1611

FLOOR MAT

1шт.

3

KHJ1636

FOOT REST

Left Hand

1шт.

4

KHJ1638

FOOT REST

Right Hand

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

Standard Models With Dozer Blade

1шт.

7

KHJ2222

FLOOR MAT

Floor

1шт.

8

KHJ1636

FOOT REST

Left Hand

1шт.

9

KHJ1638

FOOT REST

Right Hand

1шт.

10

166052A1

BOLT

With Attached Washer

4шт.
