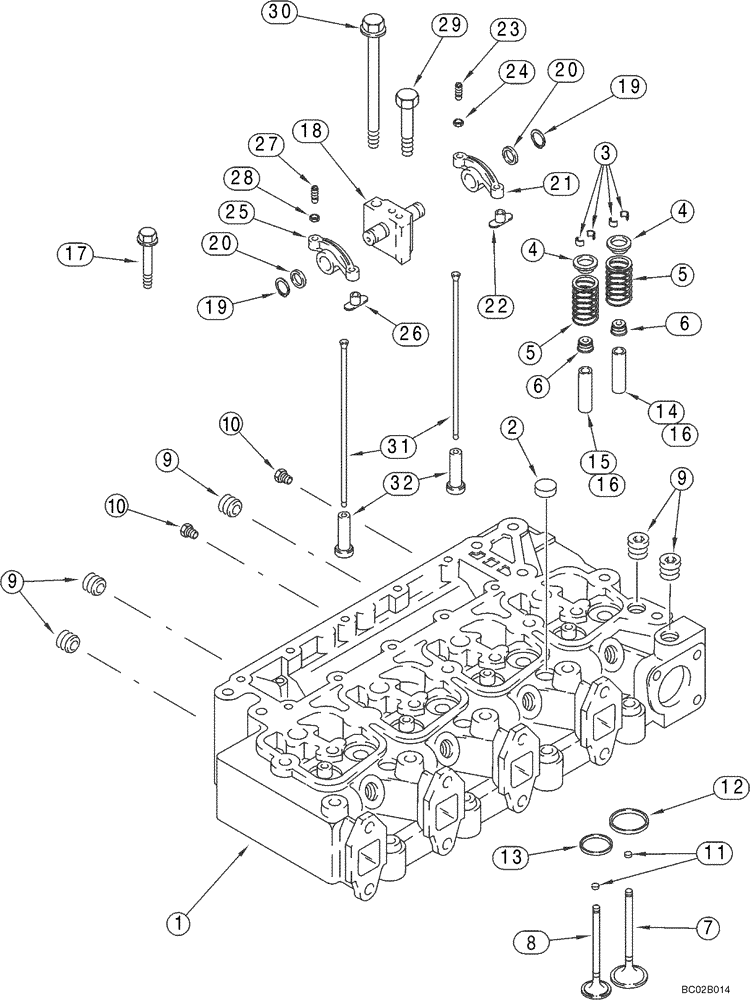

Запчасти Case CX130 (02-16) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

JR938660

REMAN-CYLINDER HEAD

N.A. Only

1шт.

JC938660

CORE-CYLINDER HEAD

1шт.

J938660

CYLINDER HEAD

With Valves, Incl. 1 - 8

1шт.

1

J933422

HEAD (CYLINDER)

Without Valves, Incl. 2

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

CASJ900250

RETAINER

16шт.

4

J935038

RETAINER

8шт.

5

J932453

SPRING

8шт.

6

J921640

SEAL

8шт.

7

J920867

VALVE

4шт.

8

J920868

VALVE

4шт.

9

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

10

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

11

J910412

WEAR PAD

Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake, Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust, Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD, Intake, Service Repair Only

4шт.

15

J904409

GUIDE

14 mm OD, Exhaust, Service Repair Only

4шт.

16

J906206

GUIDE

11 mm OD, Intake And Exhaust, Service Repair Only

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Incl. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

24

A77902

NUT

3/8 - 24 NF

1шт.

25

J910810

ROCKER

Incl. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

32

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.

33

1983238C1

SENSOR,1/2" - 14

Coolant Temperature

1шт.

34

153493A1

BUSHING

Used With REF 33, Not Illustrated

1шт.
