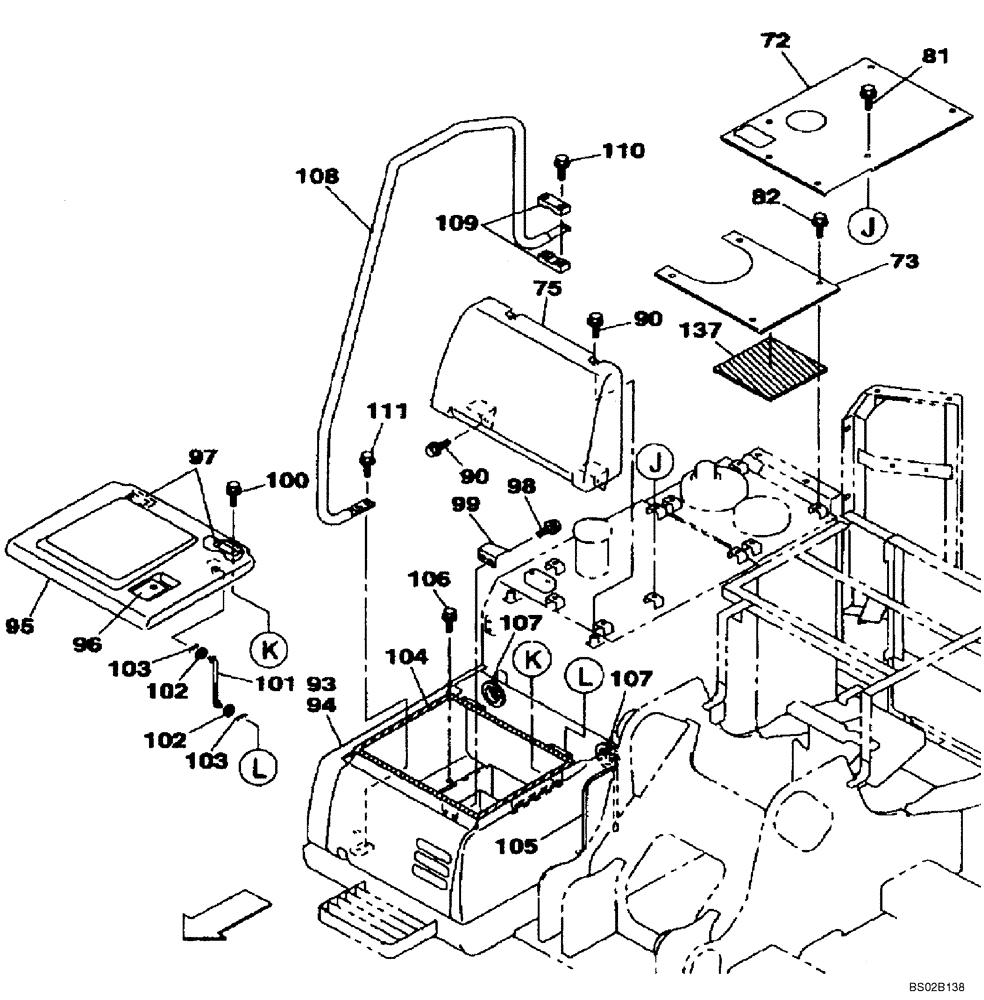

Запчасти Case CX130 (09-10) - STORAGE BOX - INSULATION (WITH DOZER BLADE) (09) - CHASSIS

Models With Dozer Blade

1шт.

72

KNN1254Y2

COVER

Replaces KNN1254

1шт.

73

KNN1255Y2

COVER

Replaces KNN1255

1шт.

75

KRN2158Y2

COVER

Replaces KRN2158

1шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

82

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

90

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

93

KNN1340Y2

COVER

Front

1шт.

94

KRN2444Y2

COVER

No longer Available, Order KNN1340Y2

1шт.

95

KRN2203Y2

COVER

Incl. 96, 97, Replaces KRN2203

1шт.

96

150938A1

LOCK

1шт.

97

159118A1

HINGE

2шт.

98

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

99

159114A1

BRACKET

1шт.

100

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

101

159119A1

STAY

1шт.

102

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

103

153181A1

COTTER PIN

2шт.

104

KRN2295

RUBBER SEAL

1шт.

105

KHN3440

SEAL PROTECTION

Replaces 168675A1

1шт.

106

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

107

KHN2651

GROMMET

2шт.

108

KHN3032Y2

STAY

1шт.

109

KHN3033

COLLAR

2шт.

110

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

111

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

137

KRN2092

SEAL

1шт.
