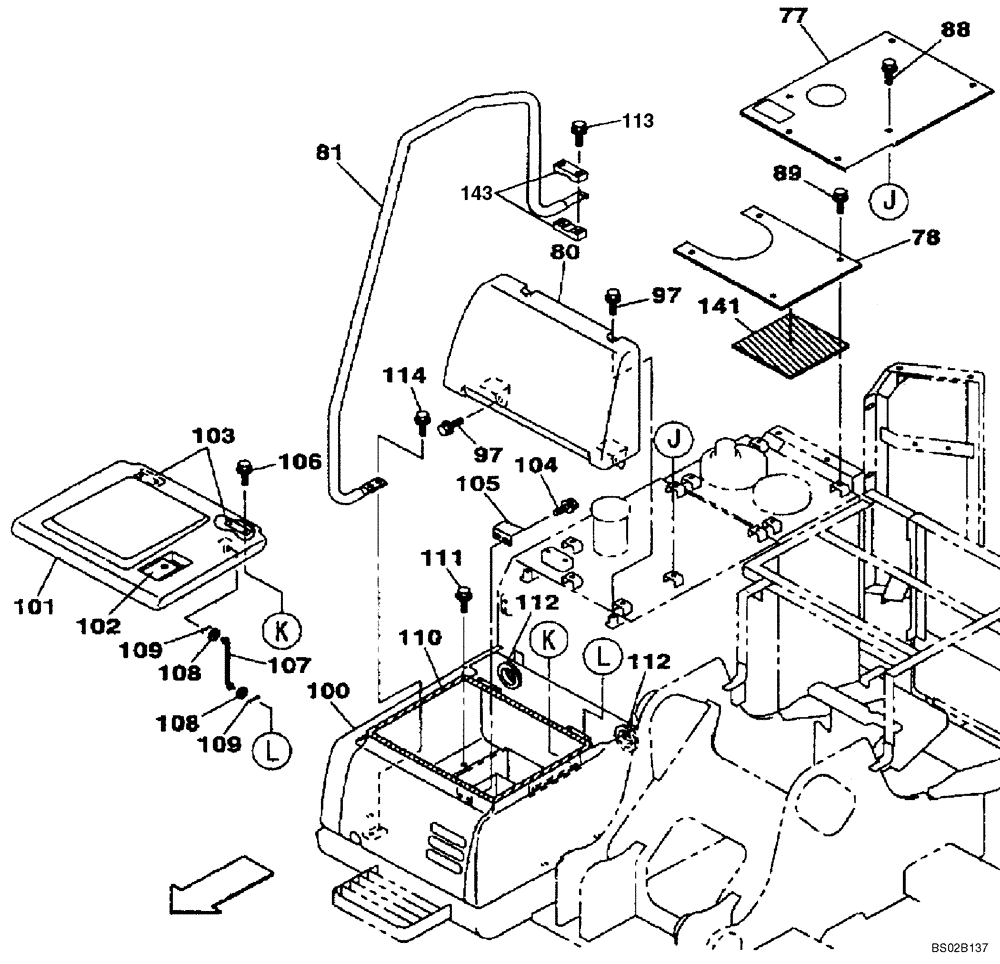

Запчасти Case CX130 (09-09) - STORAGE BOX - INSULATION (WITHOUT DOZER BLADE) (09) - CHASSIS

Models Without Dozer Blade

1шт.

77

KNN1254Y2

COVER

Replaces KNN1254

1шт.

78

KNN1255Y2

COVER

Replaces KNN1255

1шт.

80

KRN2158Y2

COVER

Replaces KRN2158

1шт.

81

KHN3032Y2

STAY

1шт.

88

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

89

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

97

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

KRN2291

COVER

Incl. 100 - 110

1шт.

100

KRN2157Y2

COVER

1шт.

101

KRN2203Y2

COVER

Incl. 102, 103, Replaces KRN2203

1шт.

102

150938A1

LOCK

1шт.

103

159118A1

HINGE

2шт.

104

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

105

159114A1

BRACKET

1шт.

106

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

107

159119A1

STAY

1шт.

109

153181A1

COTTER PIN

2шт.

110

KRN2295

RUBBER SEAL

1шт.

111

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

112

KHN2651

GROMMET

2шт.

113

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

114

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

141

KRN2092

SEAL

1шт.

143

KHN3033

COLLAR

2шт.

108

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
