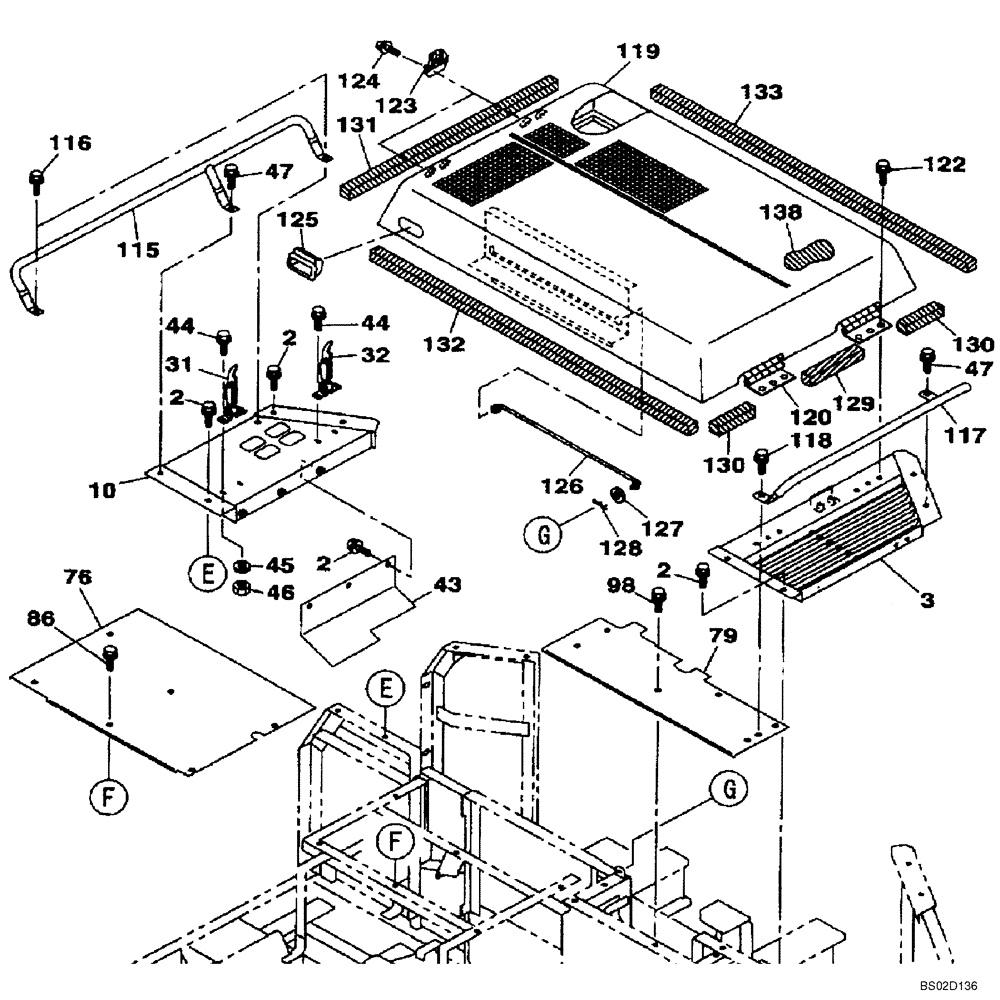

Запчасти Case CX130 (09-08) - HOOD, ENGINE - INSULATION (09) - CHASSIS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

10шт.

3

KNN1306G1

FRAME

Replaces KNN1306

1шт.

10

KNN1309G1

FRAME

Replaces KNN1309

1шт.

31

150790A1

LATCH

1шт.

32

152423A1

LATCH

1шт.

43

KNN1316

COVER

1шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

46

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

47

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

76

KNN1314Y2

COVER

Replaces KNN1314

1шт.

79

KNN1315Y2

COVER

Replaces KNN1315

1шт.

86

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

98

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

115

KNN1291Y2

STAY

Replaces KNN1291

1шт.

116

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

117

KNN1292Y2

STAY

Replaces KNN1292

1шт.

118

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

119

KNN1355G1

HOOD

Incl. 120, Replaces KNN1297

1шт.

120

KHN2143

HINGE

2шт.

122

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

123

150785A1

STOP LOCK

2шт.

124

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

125

KHN1960

HANDLE

1шт.

126

KNN1326

STAY

1шт.

127

150409A1

WASHER

10,5 x 21 x 3,2 mm

1шт.

128

153181A1

COTTER PIN

1шт.

129

KBN1075

FOAM INSULATION

1шт.

130

KNN1322

FOAM INSULATION

2шт.

131

KNN1323

FOAM INSULATION

1шт.

132

KNN1324

FOAM INSULATION

1шт.

133

KNN1325

FOAM INSULATION

1шт.

138

KNN1321

FOAM INSULATION

1шт.
