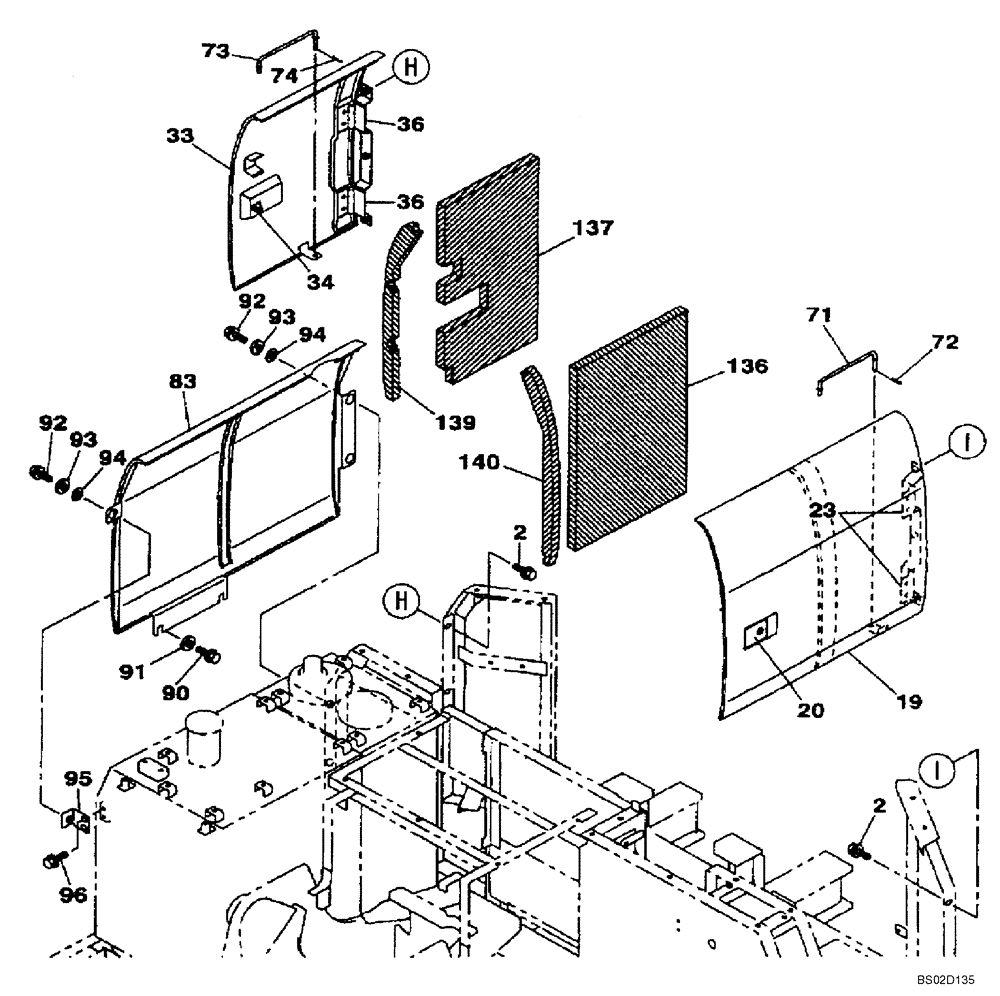

Запчасти Case CX130 (09-07) - ACCESS DOOR - INSULATION (09) - CHASSIS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

19

KNN1298Y2

INSPECTION DOOR

Left Hand, Incl. 20, 23, Replaces KNN1298

1шт.

20

150938A1

LOCK

1шт.

23

159098A1

HINGE

2шт.

33

KNN1299Y2

INSPECTION DOOR

Right Hand, Incl. 34, 35, Replaces KNN1299

1шт.

34

150939A1

LOCK

1шт.

36

159098A1

HINGE

2шт.

71

159101A1

STAY

1шт.

72

153181A1

COTTER PIN

1шт.

73

159101A1

STAY

1шт.

74

153181A1

COTTER PIN

1шт.

83

KNN1242Y2

COVER ASSY

Right Hand Side, Replaces KNN1242

1шт.

90

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

91

151161A1

WASHER

2шт.

92

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

93

162409A1

WASHER

3шт.

94

KHN2061

WASHER

3шт.

95

KNN1206

BRACKET

1шт.

96

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

136

KNN1349

INSULATOR

1шт.

137

KNN1319

FOAM INSULATION

1шт.

139

KRN2264

FOAM INSULATION

1шт.

140

KRN2265

FOAM INSULATION

1шт.
