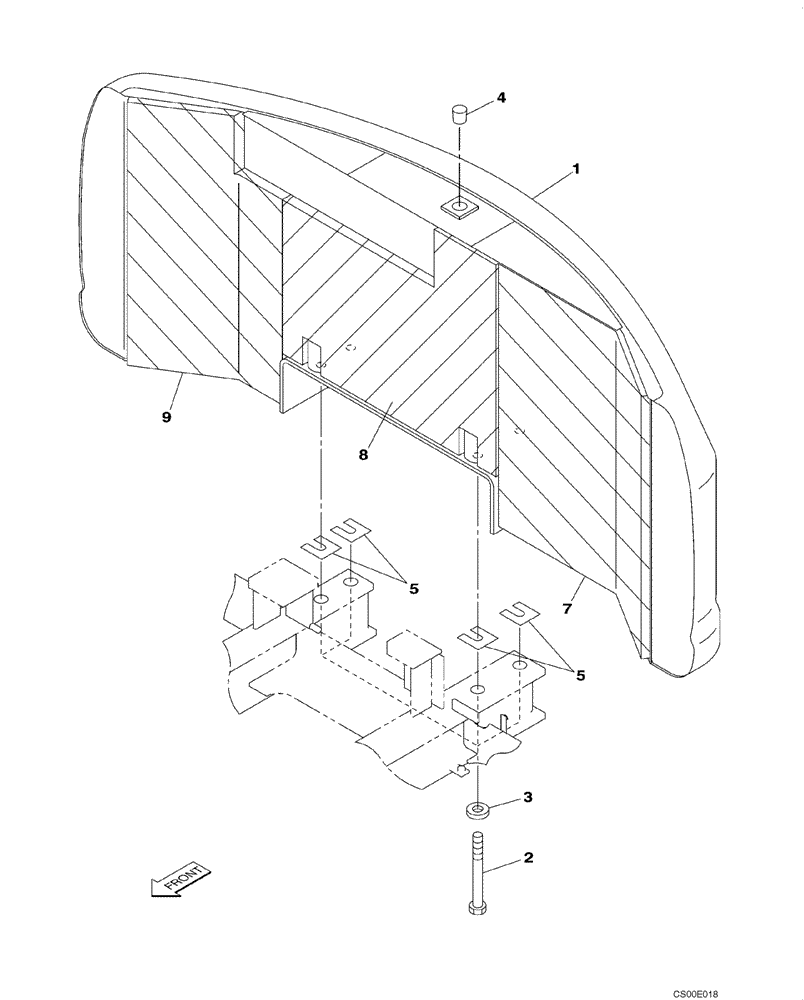

Запчасти Case CX130 (09-05) - COUNTERWEIGHT - SOUNDPROOFING (09) - CHASSIS

1

KNB0688Y2

WEIGHT PACKAGE

Replaces KNB0688

1шт.

1

Counterweight Lifting Eye Not Serviced - Thread size M42 pitch 4.5mm - length 70mm

1шт.

2

826-27240

BOLT,Hex, M27 x 3 x 240mm, Cl 10.9

4шт.

3

163857A1

WASHER

4шт.

4

157668A1

PLUG

Replaces 150139A1

1шт.

5

158933A1

SHIM

0,80 mm (0,032 in)

1шт.

6

158934A1

SHIM

1,20 mm (0,047 in)

1шт.

7

KNB0663

NOISE PROTECTION

Acoustical

1шт.

8

KNB0664

NOISE PROTECTION

Acoustical

1шт.

9

KNB0665

NOISE PROTECTION

Acoustical

1шт.

10

KNB12650

SHIM

SHIM, PLATE Not Shown

1шт.

11

KNB12660

SHIM

SHIM, PLATE Not Shown

1шт.
