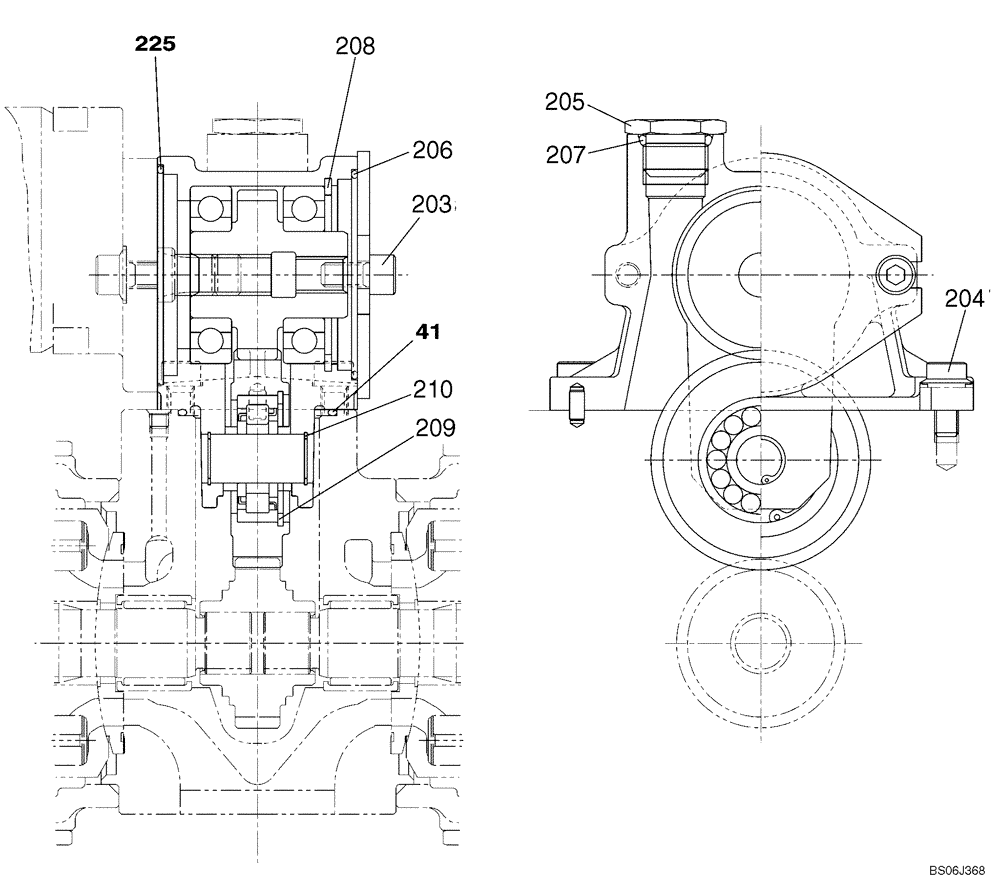

Запчасти Case CX130 (08-146) - KNJ3023 PUMP ASSY, HYDRAULIC - CONTROL BLOCK (08) - HYDRAULICS

KNJ3023

PUMP, HYDRAULIC

Includes All Parts On Figures 08-145 - 08-150

1шт.

87341958

REMAN-HYD PUMP

Remanufactured HYD PUMP - For N.A. Only, Start Serial: DAC0713246

1шт.

87341959

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

41

154713A1

O-RING

2шт.

KMJ2983

REPAIR KIT

Incl. 203 - 210

1шт.

203

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

2шт.

204

LA00691

BOLT,Hex Skt Hd

4шт.

205

155471A1

PLUG

1шт.

206

154689A1

O-RING

1шт.

207

154503A1

O-RING

1шт.

208

800-2172

SNAP RING

1шт.

209

800-2152

SNAP RING,M52, Int

1шт.

210

800-2120

SNAP RING,M20, Int

1шт.

225

154697A1

O-RING

1шт.
