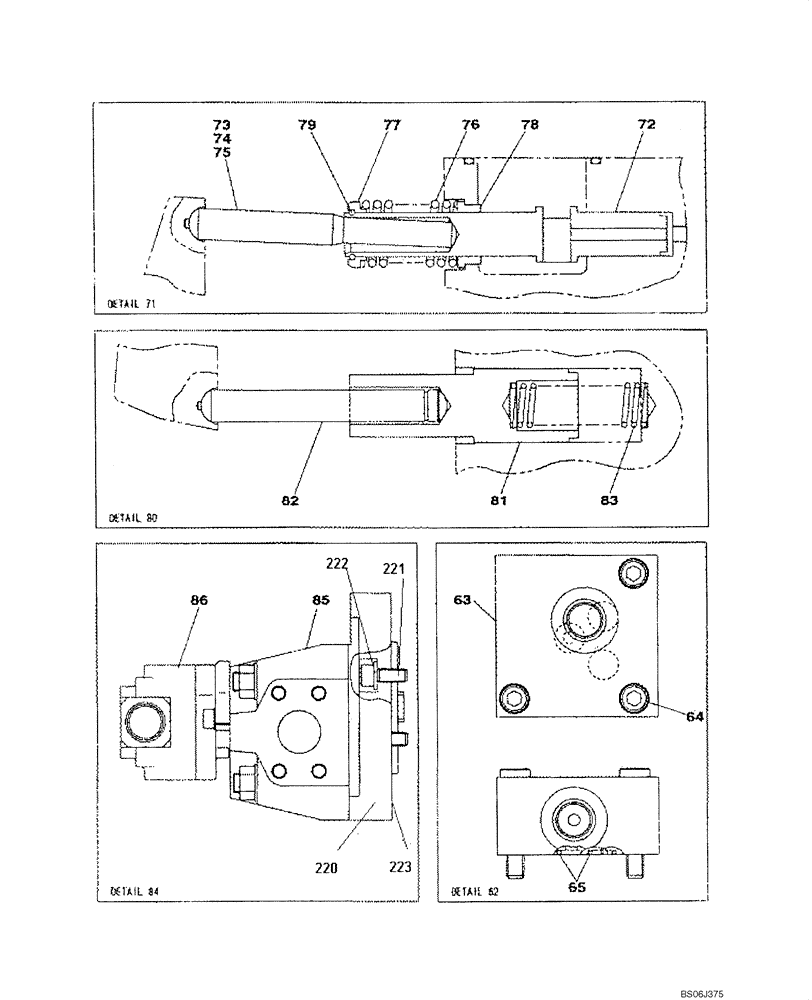

Запчасти Case CX130 (08-141) - KNJ2977 PUMP ASSY, HYDRAULIC - CONTROLLER (08) - HYDRAULICS

KNJ2977

PUMP, HYDRAULIC

Includes All Parts On Figures 08-137 - 08-144

1шт.

87341954

REMAN-HYD PUMP

Remanufactured HYD PUMP, For N.A. Only

1шт.

87341955

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

62

LW00393

COVER

Incl. 63 - 65

1шт.

63

LW00394

COVER

1шт.

64

108R006Y035N

BOLT

3шт.

65

154451A1

O-RING

3шт.

71

LJ00761

PILOT VALVE

Incl. 72 - 79

2шт.

72

LJ00772

PISTON

1шт.

73

LB00565

ROD

1шт.

74

LB00566

ROD

1шт.

75

LB00567

ROD

1шт.

76

LG00353

COMPRESSION SPRING

1шт.

77

LR00597

SPRING SEAT

1шт.

78

NSS

NOT SOLD SEPARAT

Bushing

1шт.

79

LR00598

SPRING SEAT

1шт.

80

LJ00762

PILOT VALVE

Incl. 81 - 83

1шт.

81

LJ00773

PISTON

1шт.

82

LB00568

ROD

1шт.

83

LG00354

COMPRESSION SPRING

1шт.

84

LJ01207

PUMP

Incl. 85, 86

1шт.

85

LJ01208

PUMP

1шт.

86

LJ01209

PUMP

1шт.

220

LR01139

PLATE

1шт.

221

108R010Z025N

BOLT

4шт.

222

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

223

154731A1

O-RING

1шт.
