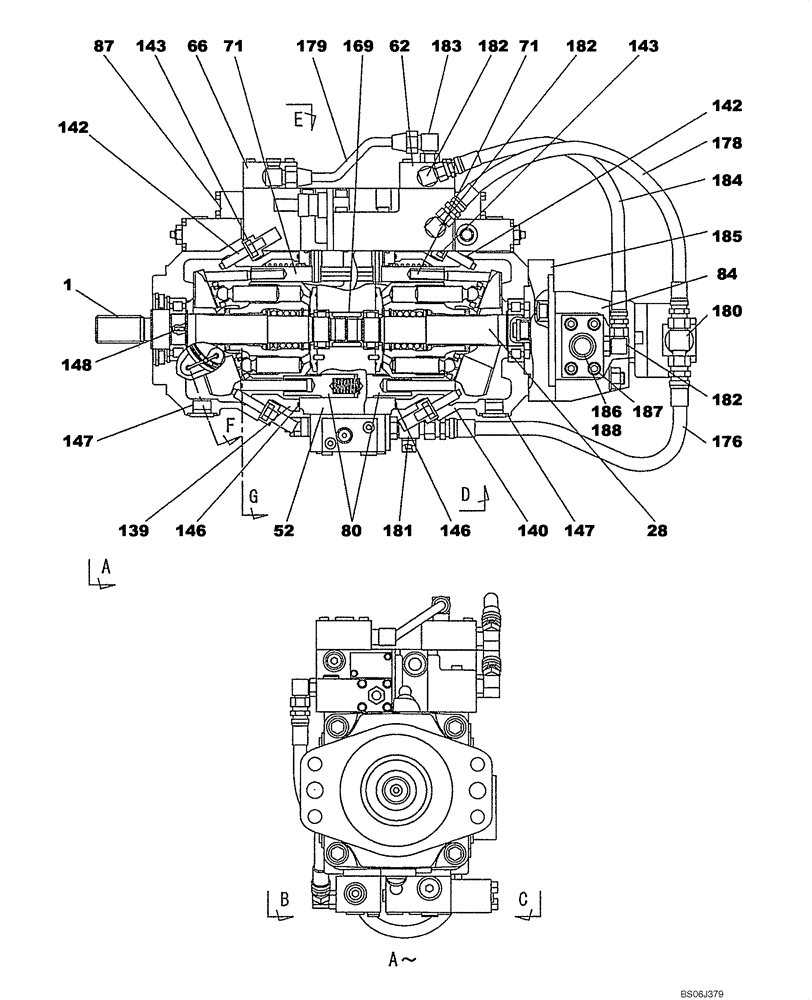

Запчасти Case CX130 (08-137) - KNJ2977 PUMP ASSY, HYDRAULIC (08) - HYDRAULICS

KNJ2977

PUMP, HYDRAULIC

Includes All Parts On Figures 08-137 - 08-144

1шт.

87341954

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP, For NA Only, Serial Range: DAC0713099-DAC0713245

1шт.

87341955

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1

LU00182

ROTOR

See Figure 08-144

1шт.

28

LU00183

ROTOR

See Figure 08-143

1шт.

52

LW00318

COVER

See Figure 08-142

1шт.

62

LW00393

COVER

See Figure 08-141

1шт.

66

LW00319

COVER

See Figure 08-139

1шт.

71

LJ00761

PILOT VALVE

See Figure 08-141

2шт.

80

LJ00762

PILOT VALVE

See Figure 08-141

2шт.

84

LJ01207

PUMP

See Figure 08-141

1шт.

87

LJ01012

REGULATOR

See Figure 08-140

2шт.

139

LT00100

HOUSING

1шт.

140

LT00129

HOUSING

1шт.

142

LA00715

SCREW,Hex Skt

4шт.

143

829-1310

NUT,M10, Cl 10

4шт.

146

LBQ5164

O-RING

2шт.

147

LK00118

PLUG

6шт.

148

LA00716

DOWEL

4шт.

169

LB00559

SPLINED COUPLING

1шт.

176

LK00411

HOSE

1шт.

178

LK00413

HOSE

1шт.

179

LR00595

HYD TUBE

1шт.

180

LK00313

TEE

1шт.

181

LK00314

TEE

1шт.

182

LLP0106

ELBOW

5шт.

183

LK00315

ELBOW

2шт.

184

LK00412

HOSE

1шт.

185

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

186

LH00396

FLANGE

1шт.

187

861-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

188

154529A1

O-RING

1шт.
