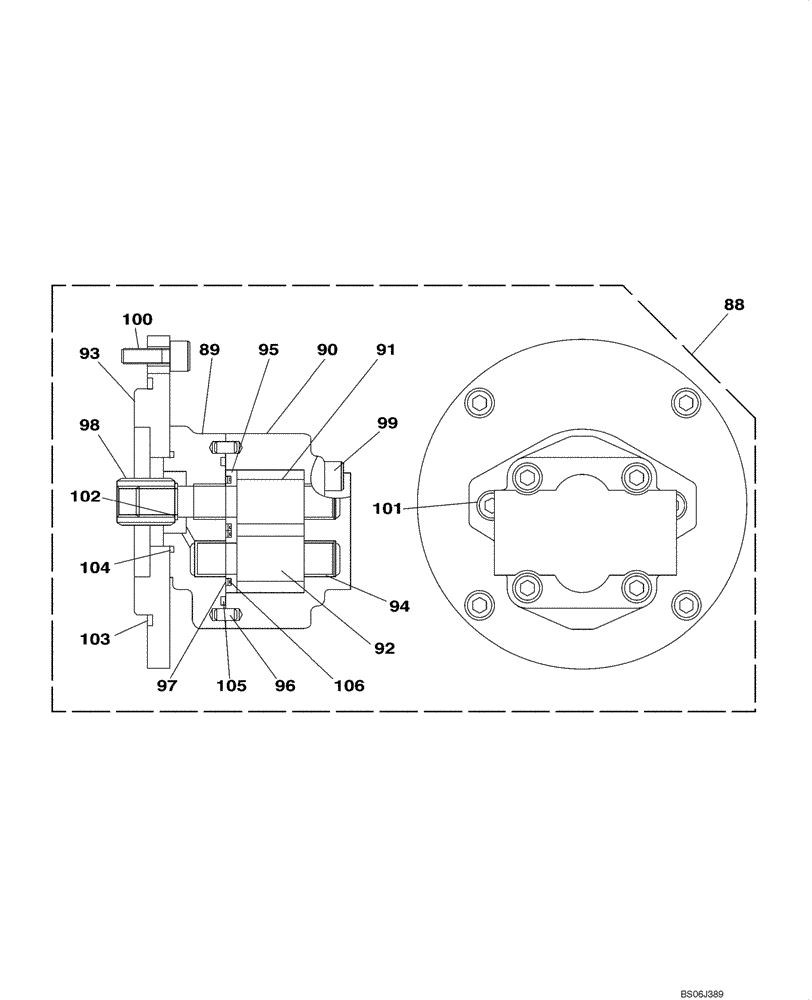

Запчасти Case CX130 (08-127) - KNJ3000 PUMP ASSY, HYDRAULIC - LOW PRESSURE PUMP (08) - HYDRAULICS

KNJ3000

PUMP, HYDRAULIC

Includes All Parts On Figures 08-122 - 08-131

1шт.

87341952

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

87341953

CORE-HYDRAULIC PUMP

Return Number

1шт.

88

LJ00766

PUMP

Incl. 89 - 106

1шт.

89

LT00102

FRAME

1шт.

90

LT00103

HOUSING

1шт.

91

LC00167

GEAR

1шт.

92

LC00168

GEAR

1шт.

93

LR00604

PLATE

1шт.

94

LK00317

BUSHING

4шт.

95

LR00605

PLATE

1шт.

96

335A050T010

COTTER PIN

2шт.

97

164803A1

O-RING

1шт.

98

LB00571

SPLINED COUPLING

1шт.

99

861-8060

HEX SOC SCREW,M8 x 60mm, Cl 12.9

4шт.

100

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

101

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

2шт.

102

800-1114

SNAP RING,M14, Ext

1шт.

103

154731A1

O-RING

1шт.

104

LBP0076

O-RING

1шт.

104

155193A1

O-RING

1шт.

106

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

1шт.
