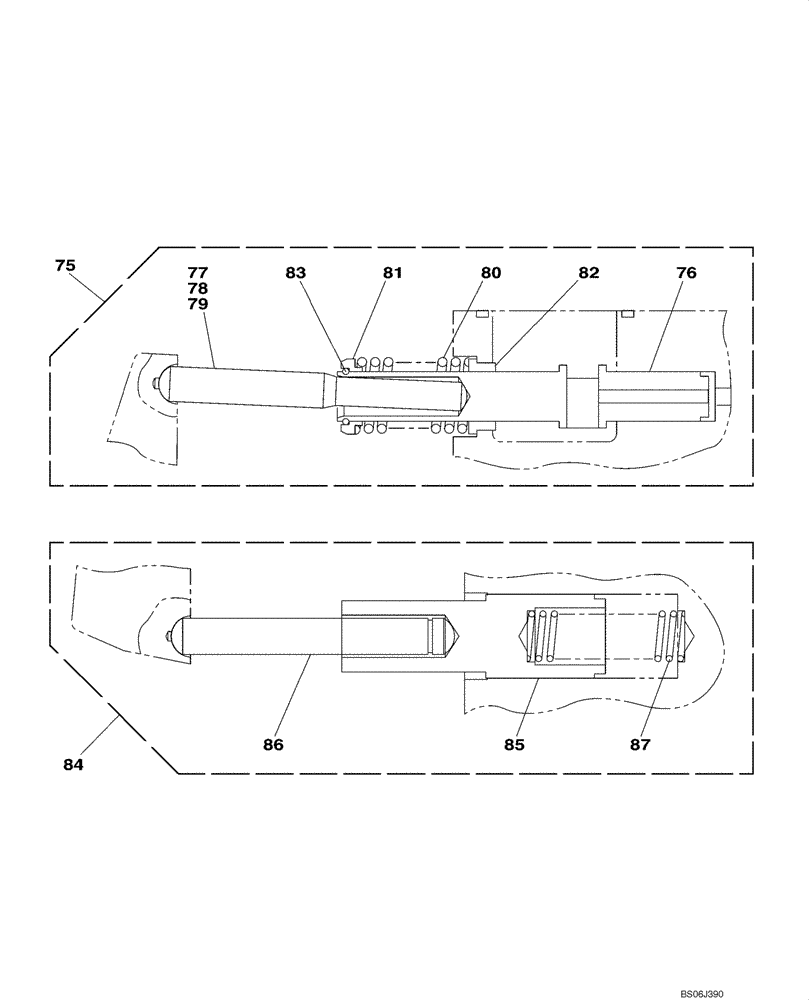

Запчасти Case CX130 (08-126) - KNJ3000 PUMP ASSY, HYDRAULIC - CONTROLLER (08) - HYDRAULICS

KNJ3000

PUMP, HYDRAULIC

Includes All Parts On Figures 08-122 - 08-131

1шт.

87341952

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

87341953

CORE-HYDRAULIC PUMP

Return Number

1шт.

75

LJ00761

PILOT VALVE

Incl. 76 - 83

1шт.

76

LJ00772

PISTON

1шт.

77

LB00565

ROD

1шт.

78

LB00566

ROD

1шт.

79

LB00567

ROD

1шт.

80

LG00353

COMPRESSION SPRING

1шт.

81

LR00597

SPRING SEAT

1шт.

82

LK00316

BUSHING

1шт.

83

LR00598

SPRING SEAT

1шт.

84

LJ00762

PILOT VALVE

Incl. 85 - 87

1шт.

85

LJ00773

PISTON

1шт.

86

LB00568

ROD

1шт.

87

LG00354

COMPRESSION SPRING

1шт.
