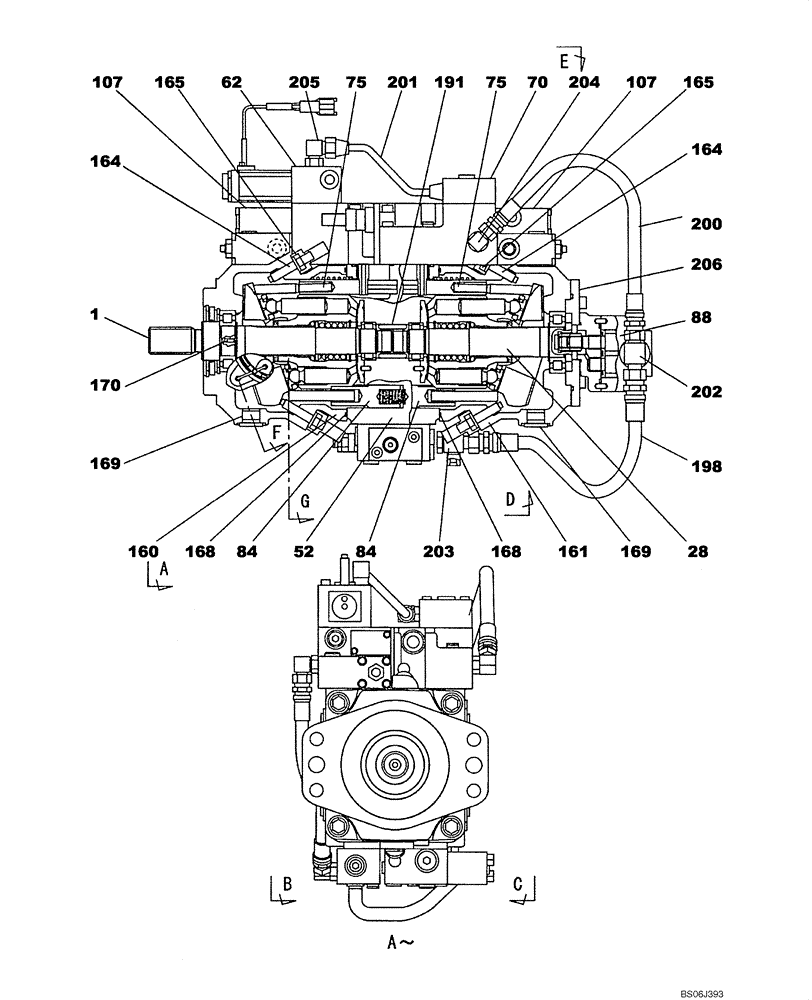

Запчасти Case CX130 (08-122) - KNJ3000 PUMP ASSY, HYDRAULIC (08) - HYDRAULICS

KNJ3000

PUMP, HYDRAULIC

Includes All Parts On Figures 08-122 - 08-131

1шт.

87341952

REMAN-HYD PUMP

Return For New P/N KNJ3000

1шт.

87341953

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LU00089

ROTOR

See Figure 08-131

1шт.

28

LU00090

ROTOR

See Figure 08-130

1шт.

52

LW00318

COVER

See Figure 08-129

1шт.

62

LS00134

CONTROL BLOCK

See Figure 08-128

1шт.

70

LW00319

COVER

See Figure 08-128

1шт.

75

LJ00761

PILOT VALVE

See Figure 08-126

2шт.

84

LJ00762

PILOT VALVE

See Figure 08-126

2шт.

88

LJ00766

PUMP

See Figure 08-127

1шт.

107

LJ01202

REGULATOR

See Figure 08-125

2шт.

160

LT00100

HOUSING

1шт.

161

LT00101

HOUSING

1шт.

164

LA00715

SCREW,Hex Skt

4шт.

165

162R010VN

NUT

4шт.

168

LBQ5164

O-RING

2шт.

169

LK00118

PLUG

6шт.

170

LA00716

DOWEL

4шт.

191

LB00559

SPLINED COUPLING

1шт.

198

LK00310

PLUG

1шт.

200

LK00312

HYDRAULIC HOSE

1шт.

201

LR00595

HYD TUBE

1шт.

202

LK00313

TEE

1шт.

203

LK00314

TEE

1шт.

204

LLP0106

ELBOW

3шт.

205

LK00315

ELBOW

2шт.

206

NSS

NOT SOLD SEPARAT

Nameplate

1шт.
