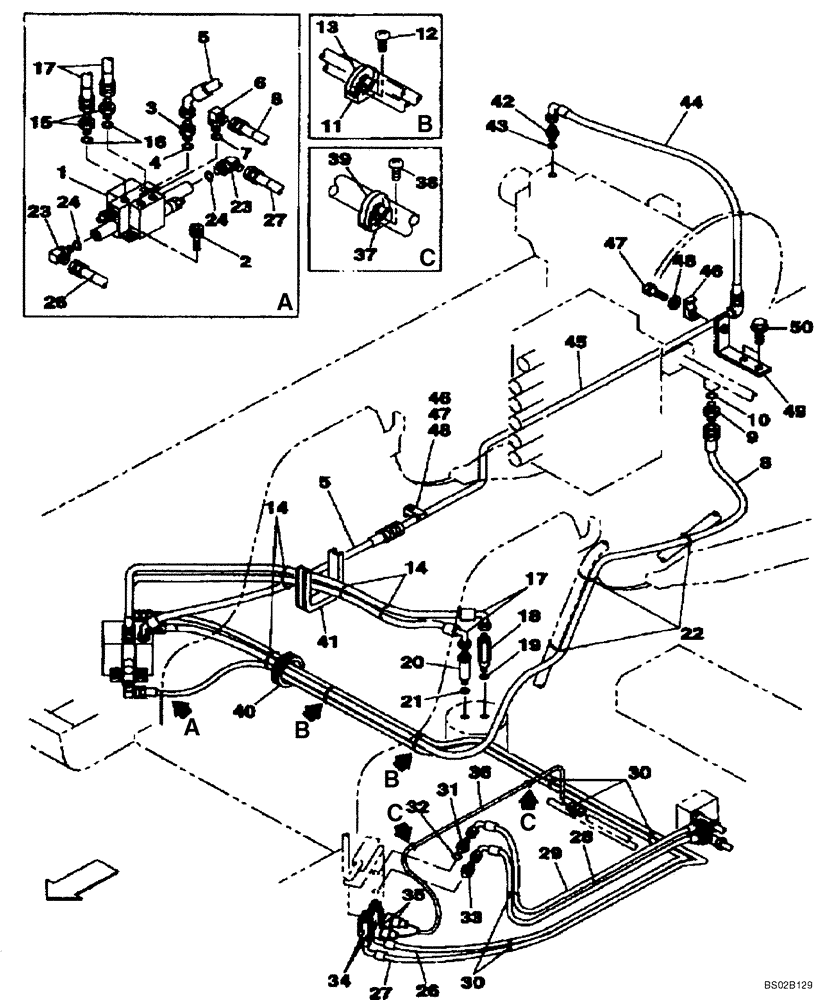

Запчасти Case CX130 (08-114) - HYDRAULICS - BLADE, DOZER (DAC0713099 - DAC0713245) (08) - HYDRAULICS

Models Without Load Hold

1шт.

1

168709A1

VALVE SECTION

Blade Control, See Figure 08-120

1шт.

2

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

3шт.

3

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 4

1шт.

4

154487A1

O-RING

1шт.

5

KNJ2962

HYDRAULIC HOSE,12.70 mm ID x 730.00 mm

1шт.

6

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

KNJ3011

HYDRAULIC HOSE,2500.00 mm

1шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

150860A1

COLLAR

2шт.

12

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

13

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

14

150071A1

MOUNTING CLIP

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

2шт.

16

154487A1

O-RING

1шт.

17

KNJ2961

HYDRAULIC HOSE,12.70 mm ID x 1150.00 mm

2шт.

18

KHJ2232

ADAPTER

Incl. 19

1шт.

19

154487A1

O-RING

1шт.

20

167645A1

FITTING

Incl. 21

1шт.

21

154487A1

O-RING

1шт.

22

150071A1

MOUNTING CLIP

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 24

2шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

163359A1

HOSE ASSY.

1шт.

27

166180A1

HYDRAULIC HOSE

1шт.

28

KSJ2117

HOSE

1шт.

29

164236A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

30

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

KHJ1038

ADAPTER

2шт.

35

159599A1

PRESSURE SWITCH

2шт.

36

KHR3711

HARNESS

1шт.

37

150860A1

COLLAR

2шт.

38

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

2шт.

39

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

40

KEJ0422

GROMMET

1шт.

41

163145A1

GROMMET

1шт.

42

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 43

1шт.

43

154487A1

O-RING

1шт.

44

KNJ2821

HYDRAULIC HOSE,12.70 mm ID x 750.00 mm

1шт.

45

KNJ2815

TUBE ASSY.

1шт.

46

166401A1

HALF-FLANGE

2шт.

47

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

48

150811A1

WASHER

M12

2шт.

49

KNJ2816

BRACKET

1шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
