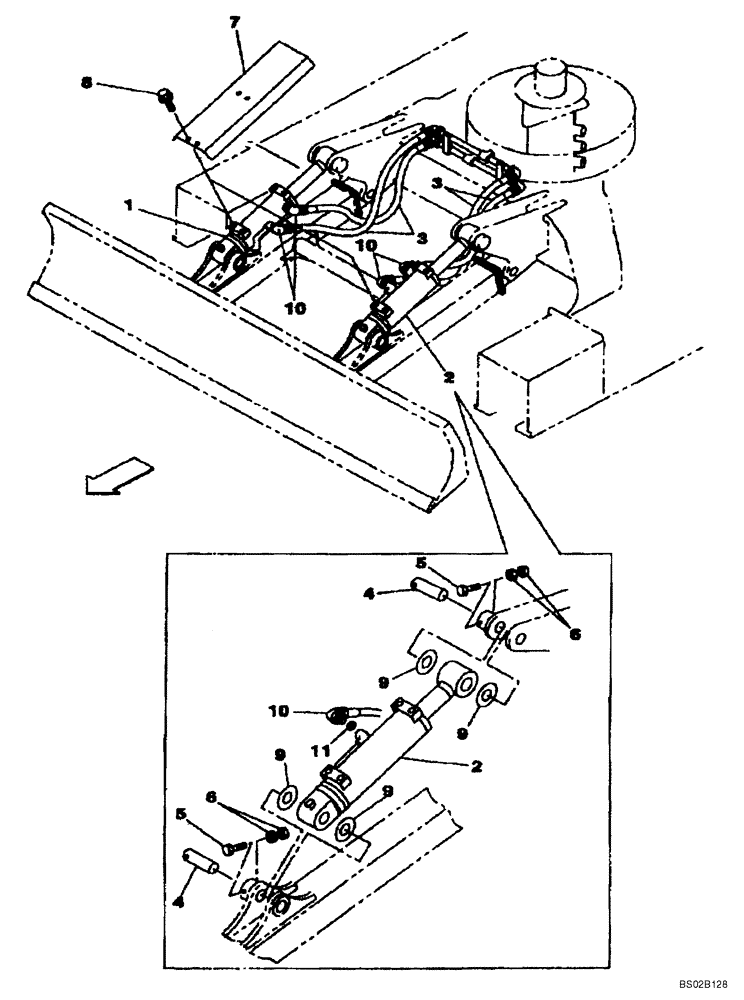

Запчасти Case CX130 (08-113) - HYDRAULICS - BLADE, DOZER (08) - HYDRAULICS

1

168636A1

HYDRAULIC CYLINDER

Blade, Right Hand, See Figure 08-118

1шт.

1

168636A1R

REMAN-HYD CYLINDER

CX130 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Blade, Right Hand

1шт.

1

168637A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

168637A1

HYDRAULIC CYLINDER

Blade, Left Hand, See Figure 08-119

1шт.

2

168637A1R

REMAN-HYD CYLINDER

CX130 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Blade, Left Hand

1шт.

2

168637A1C

CORE-HYD CYLINDER

Return Number

1шт.

3

168697A1

HOSE ASSY.

4шт.

4

168698A1

PIN

4шт.

5

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

M12 x 110

4шт.

6

829-11412

NUT,M12 x 1.25, Cl 10

8шт.

7

168699A1

PROTECTOR

2шт.

8

167893A1

BOLT

8шт.

9

166404A1

ADJUSTING PLATE

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 11

4шт.

11

154475A1

O-RING

1шт.
